COB LED Display
Pixel Pitch Options
Available in multiple fine pixel pitches: P0.9, P1.25, P1.5, P1.8, etc., ensuring optimal performance for different viewing distances.
Brightness, Refresh Rate, Gray Scale
Brightness: ≥1000 nits
Refresh Rate: Up to 3840Hz
Grayscale: 16-bit+ for smooth gradients and detailed imagery
What is COB LED Display?
COB (Chip-on-Board) is a revolutionary LED packaging technology where multiple LED chips are directly mounted on the substrate as a single lighting module. This eliminates the need for individual soldering and lens packaging, resulting in a smaller pixel pitch, better heat dissipation, and improved durability.
Indoor Ultra-Fine Pixel Pitch Series
Flexible, application-specific COB displays for creative environments and commercial integration.

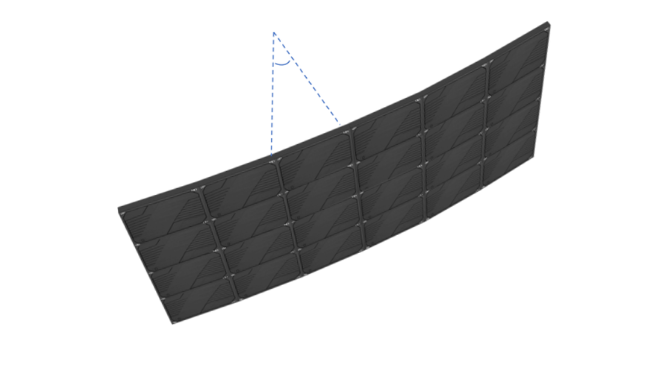

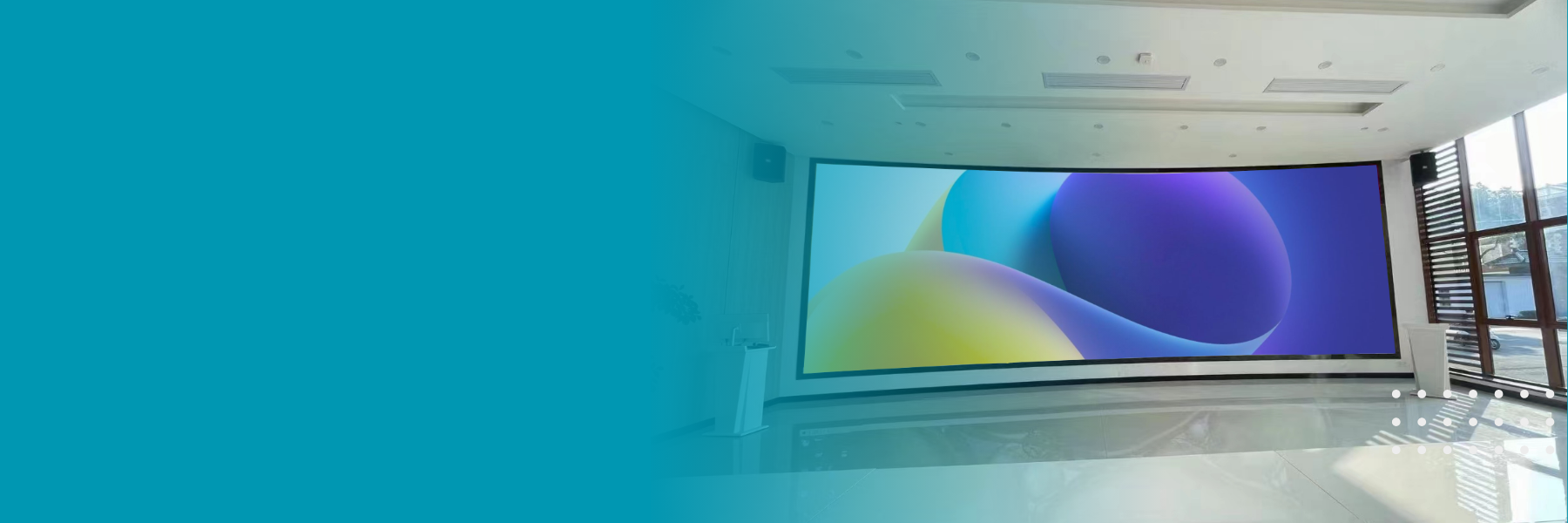

Tailor exclusive screen curvature for artistic, architectural, or immersive experiences.

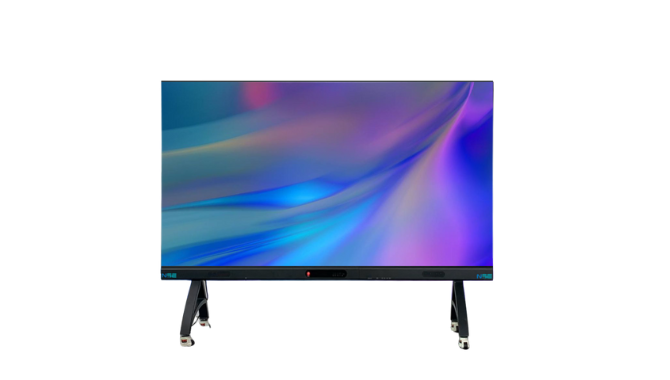

Integrate video conferencing, screen sharing, and ultra-clear display in one solution.
Portable and smart advertising display for exhibitions, retail stores, and events.

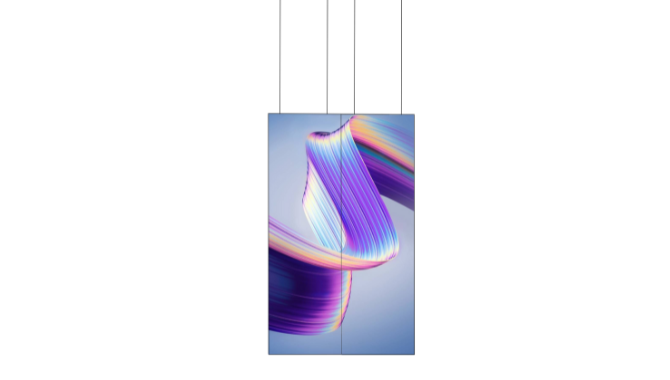

High-brightness, ultra-thin display designed for storefront windows.

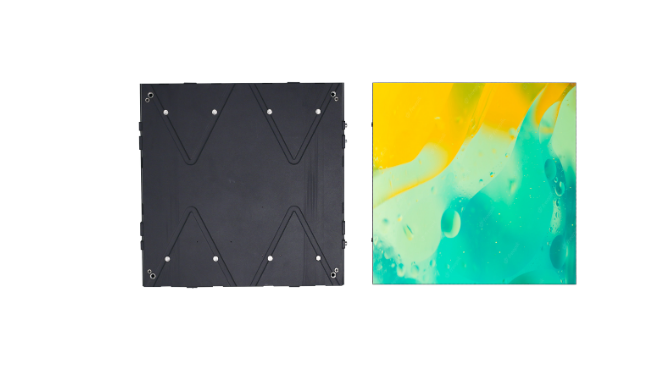

Panel Dimensions: 640x480mm / 600×337.5mm
Pixel Pitch: P0.78, P0.93, P1.25, P1.56, P1.87mm
Universal Specification: 600*337.5 module size with standard mounting holes
Applications: commercial spaces, office buildings, cultural venues, dining, entertainment, and more.

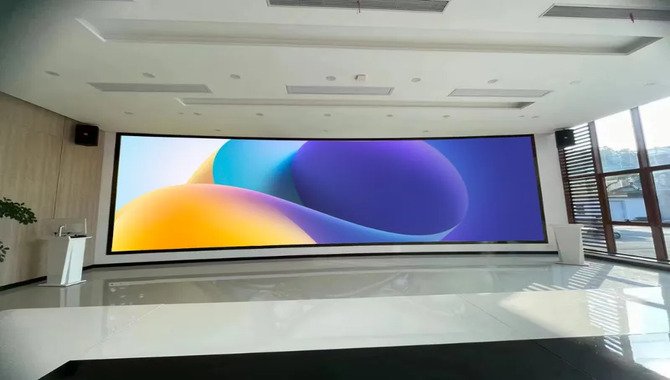

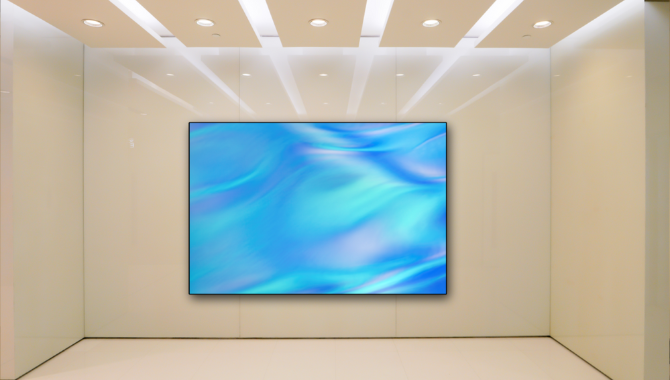

Classic Size: 640 × 480 mm
Pixel Pitch: P1.25 / P1.53 / P1.86 mm

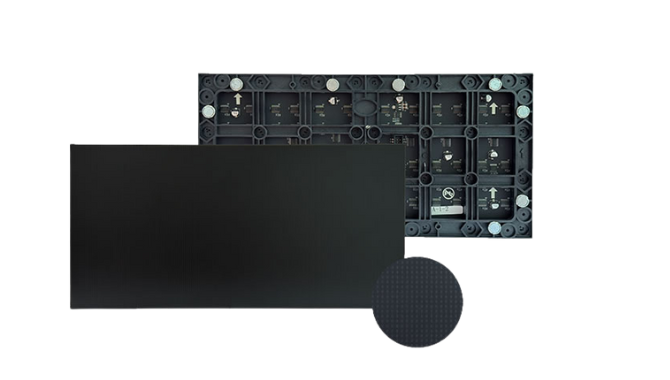

Universal Specification: 320 × 160 mm module size with standard mounting holes
Applications: Indoor HD video walls, shopping mall advertising, and more
COB Advantages Over Traditional SMD
No wire bonding means better protection from physical damage.

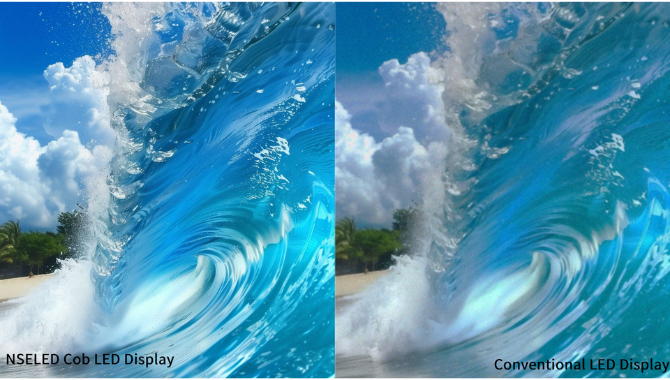

Deeper black levels due to a non-reflective surface.
Direct chip contact with substrate enhances thermal performance.
Sealed structure for long-term stability.
Modular cabinet design enables flexible screen sizes and aspect ratios, including seamless 16:9 panels.
Certified by CE, RoHS, FCC, and more, ensuring compliance with global quality standards.

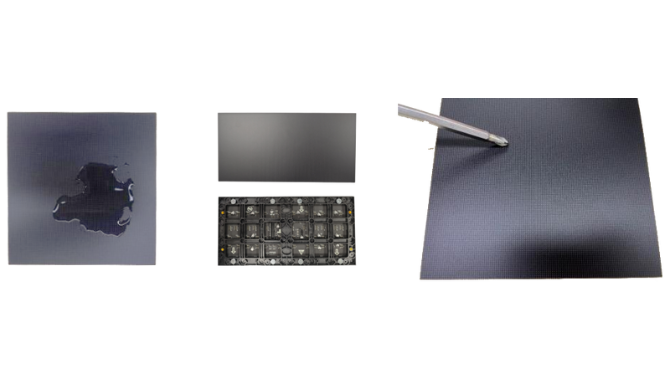

7-Level Protection & Durability
Each screen is engineered with 7-layer protection including anti-collision, waterproofing, anti-static, and more, making them suitable for rigorous applications.
Front Serviceable Design
Wide Viewing Angle
High Brightness & Contrast
Why Choose NSELED for COB LED Displays
- Factory Capabilities
NSELED operates state-of-the-art manufacturing facilities with automated production lines to ensure consistency and speed. - Strict Quality Control
Every unit undergoes rigorous QC testing including aging, brightness, and waterproof testing before shipment. - Global Shipping & Support
We provide fast, reliable global shipping and technical support in multiple languages, ensuring seamless deployment. - Case Studies
From control centers in Europe to virtual studios in the US, NSELED COB LED displays have empowered diverse clients with scalable solutions.
Compared to traditional SMD displays, COB technology offers better color consistency, enhanced contrast, stronger protection, and lower maintenance needs. It is especially ideal for high-traffic, high-precision display environments.
Whether you’re in retail, broadcasting, or event staging, COB LED screens offer unmatched reliability, image quality, and cost-efficiency. Their long life span and superior performance make them an excellent investment for businesses seeking immersive digital experiences.
COB LED Display Application Scenarios

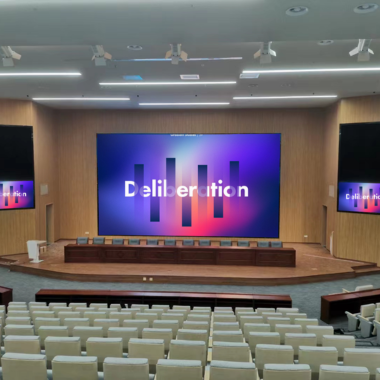

Accurate, stable, and reliable display for real-time monitoring.

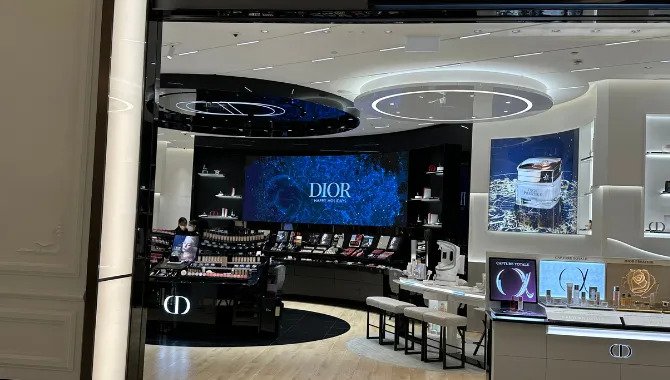

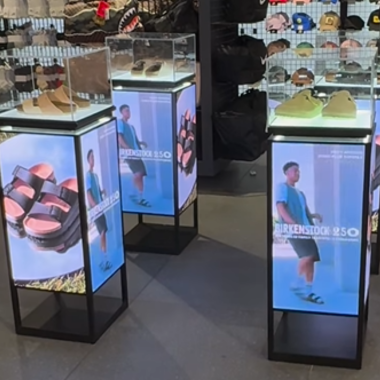

Eye-catching visuals to attract customer attention and boost engagement.

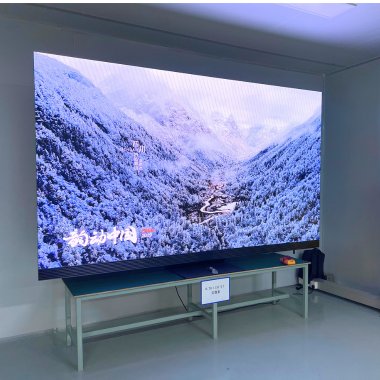

Flicker-free, high-contrast visuals perfect for professional content production.

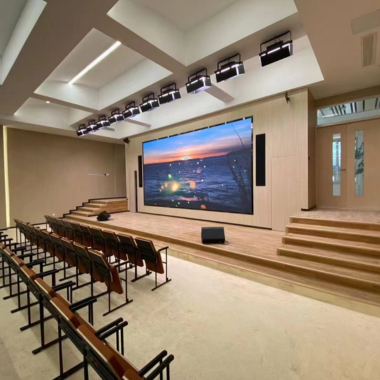

Flawless visuals and seamless integration into advanced filming setups.

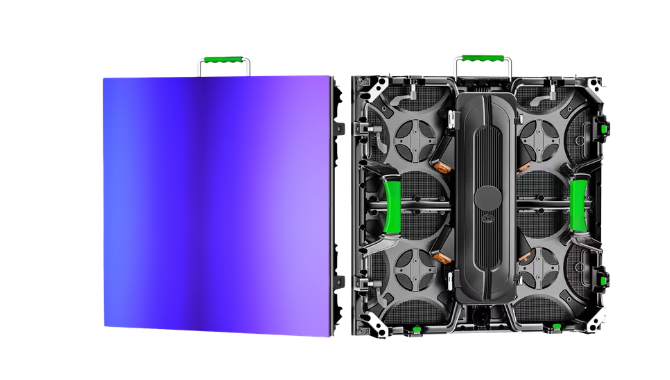

Quick-setup, lightweight panels ideal for temporary or touring installations.
Specification
- 620 Series
- 320 Series
- Video Show
- Case Show
| Model Type | ||||||
| Pixel pitch | 0.625mm | 0.78mm | 0.93 mm | 1.25 mm | 1.56 mm | 1.87 mm |
| Destiny | 2,560,000 dots /SQM | 1,638,400 dots /SQM | 1,137,777 dots /SQM | 640,000 dots /SQM | 409,600 dots /SQM | 284,444 dots /SQM |
| LED Chip | Flip Chip | Flip Chip | Flip Chip | Flip Chip | Flip Chip | Flip Chip |
| Module size | 150*168.75mm | 150*168.75mm | 150*168.75mm | 150*168.75mm | 150*168.75mm | 150*168.75mm |
| Module Resolution | 240*270 dots | 192*216 dots | 160*180 dots | 120*135 dots | 96*108 dots | 80*90 dots |
| Surface Treatment | Matt COB | Matt COB | Matt COB | Matt COB | Matt COB | Matt COB |
| Surface Hardness | 4H | 4H | 4H | 4H | 4H | 4H |
| Panel Size (W*H*D) | 600mm*675mm*39.5mm / 600mm*337.5mm*39.5mm | |||||
| Panel Weight | 7.9kg (600*675mm) / 4kg (600*337.5mm) | |||||
| Panel Resolution(dots) | 960*1080 / 960*540 | 768*864 / 768*432 | 640*720 / 640*360 | 480*540 / 480*270 | 384*432 / 384*216 | 320*360 / 320*180 |
| Material | Die-casting Aluminium | Die-casting Aluminium | Die-casting Aluminium | Die-casting Aluminium | Die-casting Aluminium | Die-casting Aluminium |
| Circuit Design | Options: Common Cathode Circuit / Common Anode Circuit | |||||
| Flash Correction Storage | Applicable | |||||
| Brightness | Standard 600nits / 1000nits optional | |||||
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Contrast Ratio | 10000:1 (Condition without lighting) | |||||
| Color Temperature | 9300K (Standard) | 9300K (Standard) | 9300K (Standard) | 9300K (Standard) | 9300K (Standard) | 9300K (Standard) |
| Viewing Angle | H160° , V160° | H160° , V160° | H160° , V160° | H160° , V160° | H160° , V160° | H160° , V160° |
| Input Voltage | AC 100~240V 50/60Hz | AC 100~240V 50/60Hz | AC 100~240V 50/60Hz | AC 100~240V 50/60Hz | AC 100~240V 50/60Hz | AC 100~240V 50/60Hz |
| Max. Power Consumption | 190w/panel (600*675mm) | 170w/panel (600*675mm) | 150w/panel (600*675mm) | 140w/panel (600*675mm) | 140w/panel (600*675mm) | 130w/panel (600*675mm) |
| 95w/panel (600*337.5mm) | 85w/panel (600*337.5mm) | 75w/panel (600*337.5mm) | 70w/panel (600*337.5mm) | 70w/panel (600*337.5mm) | 65w/panel (600*337.5mm) | |
| Maintenance Way | Front Service | Front Service | Front Service | Front Service | Front Service | Front Service |
| IP level of PCB serface | IP54 (Washable by clean water) | |||||
| Lifetime at 50% Brightness | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Operating Temperature / Humidity | -10°C-+40°C/10%RH-90%RH | |||||
| Stroage Temperature / Humidity | -20°C-+60°C/10%RH-90%RH | |||||
| Application | Indoor | |||||
| Certificate | CCC, EMC CLASS-A, ROHS, CQC | |||||
| Model Type | |||
| Pixel pitch | 1.25mm | 1.53mm | 1.86 mm |
| Destiny | 640,000 dots /SQM | 422,753 dots /SQM | 288,906 dots /SQM |
| LED Chip | Flip Chip | Flip Chip | Flip Chip |
| Module size | 320*160mm | 320*160mm | 320*160mm |
| Module Resolution | 256*128 dots | 208*104 dots | 172*86 dots |
| Surface Treatment | Matt COB | Matt COB | Matt COB |
| Surface Hardness | 4H | 4H | 4H |
| Panel Size (W*H*D) | 640mm*480mm*59mm | ||
| Panel Weight | 7.5kg/panel | ||
| Panel Resolution(dots) | 512*384 dots | 416*312 dots | 344*258 dots |
| Material | Die-casting Aluminium | Die-casting Aluminium | Die-casting Aluminium |
| Circuit Design | Common Anode Circuit | ||
| Flash Correction Storage | Applicable | ||
| Brightness | Standard 600nits | ||
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz |
| Contrast Ratio | 10000:1 (Condition without lighting) | ||
| Color Temperature | 9300K (Standard) | 9300K (Standard) | 9300K (Standard) |
| Viewing Angle | H160° , V160° | H160° , V160° | H160° , V160° |
| Input Voltage | AC 100~240V 50/60Hz | AC 100~240V 50/60Hz | AC 100~240V 50/60Hz |
| Max. Power Consumption | 135w/panel | 88w/panel | 88w/panel |
| Maintenance Way | Front Service | Front Service | Front Service |
| IP level of PCB serface | IP54 (Washable by clean water) | ||
| Lifetime at 50% Brightness | 100,000 hours | 100,000 hours | 100,000 hours |
| Operating Temperature / Humidity | -10°C-+40°C/10%RH-90%RH | ||
| Stroage Temperature / Humidity | -20°C-+60°C/10%RH-90%RH | ||
| Application | Indoor | ||
| Certificate | CCC, EMC CLASS-A, ROHS, CQC | ||
