Fine Pixel Pitch LED Display

High-resolution indoor fixed LED display designed for close-viewing commercial environments, delivering precise image detail, stable performance, and flexible installation for permanent indoor applications.

  • Indoor LED Display (4)
  • Indoor LED Display (5)
  • Indoor LED Display (6)
  • Indoor LED Display (4)
  • Indoor LED Display (5)
  • Indoor LED Display (6)

Designed for High-Definition Indoor Viewing

  • Fine Pixel Pitch LED Display optimized for indoor fixed installation

  • Built with high-density indoor COB screen technology

  • Engineered for long-hour operation in controlled indoor environments

  • Pixel Pitch: distance between LEDs; smaller pitch delivers higher resolution

  • Brightness (cd/m²): balanced for indoor lighting comfort

  • Refresh Rate: ensures smooth video and flicker-free visuals

Designed for High-Definition Indoor Viewing

Low resolution, visible pixel gaps, and unstable image quality often limit indoor LED projects at short viewing distances.
This fine pixel pitch LED display solves those issues with refined SMD technology, accurate calibration, and factory-controlled manufacturing.

Visual Performance & Image Precision

Efficient Delivery
Fine pixel pitch
Rapid Splicing
Seamless imagery
Naked-Eye AR
High grayscale performance
Outstanding lmage Quality
Color consistency Screen
Clear visibility when the screen is off
High refresh
Content appears floating in space
Right-angle corner installations
Up to 80% transparency
Front service
Pliable, Flexional
High brightness

Fine Pixel Pitch COB Technology

Enables high-definition image quality for close-range indoor viewing without visible pixel gaps

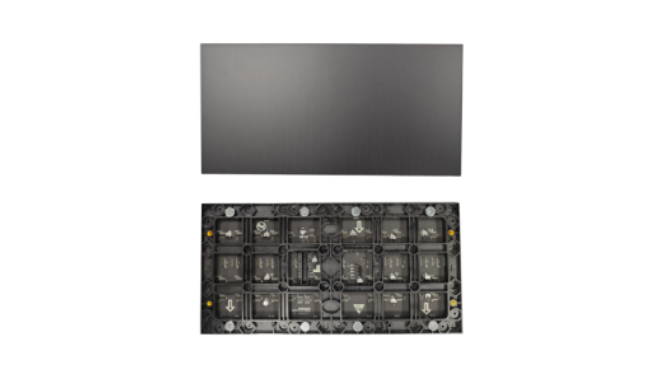

COB (320×160 mm) Series (3)

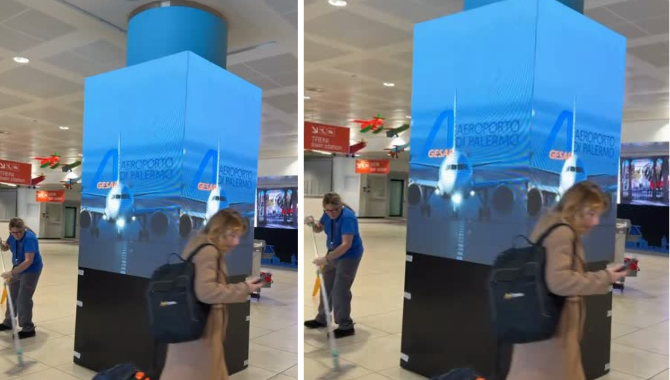

Right-Angle Installation Support

90-Degree Right-Angle Installation

Precision cabinet design supports seamless 90-degree corner installation, enabling continuous visuals across intersecting walls for indoor fixed LED displays used in retail spaces, showrooms, and architectural interiors.

Modular Cabinet Structure

Simplifies expansion, maintenance, and future upgrades while maintaining uniform image performance

Indoor LED Display (6)

High Refresh Rate Driving IC

Delivers smooth motion, stable grayscale, and flicker-free playback for video and live content

Commercial Application Scenarios

Commercial Application Scenarios
  • Retail & Branding
    Brand showrooms and flagship stores
    In-store promotion and digital signage walls
  • Corporate & Professional Spaces
    Conference rooms and command centers
    Company lobbies and presentation areas
  • Public & Institutional
    Museums and exhibition halls
    Education and training facilities

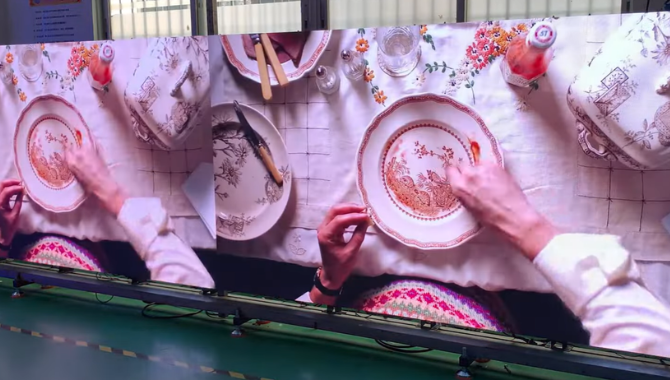

High-Value Visual Impact & Investment Return
High-Value Visual Impact & Investment Return
  • Delivers high-resolution visual performance that enhances brand presentation in close-viewing indoor environments.
  • Supports long-hour, stable operation to reduce maintenance frequency and operating costs.
  • Modular and front-service design helps lower installation and future upgrade expenses.
  • Factory-direct manufacturing improves cost control and increases overall return on investment.

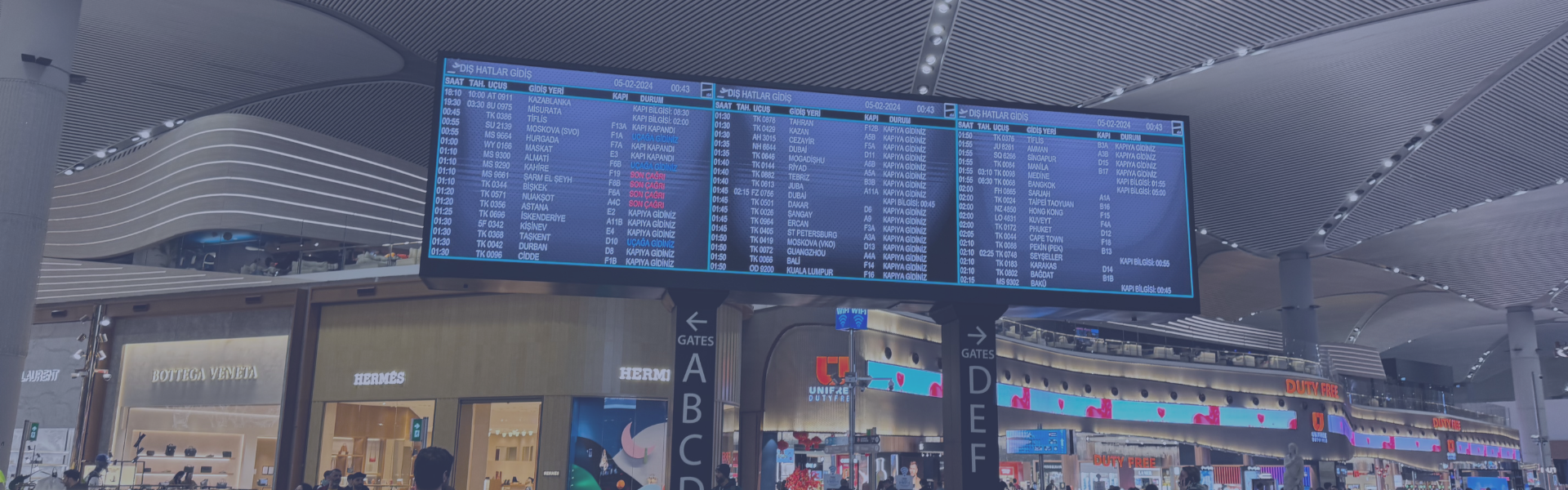

Get Project Pricing & Technical Support
Get Project Pricing & Technical Support

Deploy a professional fine pixel pitch LED display for your next indoor fixed installation.

Request Our Latest Price

Specification

  • 600x675x39.5mm & 600x337.5x39.5mm
  • 500mm×500mm & 1000mm×250mm & 1000mm×500mm
  • 640mm×480mm & 480mm×480mm
  • Video Show
  • Case Show
Model TypeUT-C 1.25UT-C 1.56
ApplicationIndoorIndoor
Pixel Pitch1. 25mm1. 56mm
Module150×168.7mm150×168.7mm
Resolution120×13596×108
Surface TreatmentMattMatt
Surface Hardness4H4H
Panel Size600x675x39.5mm / 600×337. 5×39.5mm600x675x39.5mm / 600×337. 5×39.5mm
Panel Weight7. 9kg ( 600x675mm) / 4kg ( 600×337. 5)7. 9kg ( 600x675mm) / 4kg ( 600×337. 5)
Panel Resolution480×540/480×270384×432/384×216
Pixel Density640000 dots/sqm409600 dots/sqm
Circuit DesignCommon cathode circuitCommon cathode circuit
Flash Correction StorageApplicableApplicable
Brightness of WhiteStandard 600nitsStandard 600nits
Refresh Rate3840Hz3840Hz
Contrast Ratio10000:1 (Condition without lighting)10000:1 (Condition without lighting)
Color Temperature9300K (Standard)9300K (Standard)
Viewing Angle160°160°
Input VoltageAC 100~240V 50/60HzAC 100~240V 50/60Hz
Max. Power Consumption (White Balance 600nit)130W/Panel(600x675mm); 65W/Panel(600x337mm)130W/Panel(600x675mm); 65W/Panel(600x337mm)
Maintenance WayFront ServiceFront Service
IP level of PCB SurfaceIP54 (Washable by clean water)IP54 (Washable by clean water)
Operating Temperature-10℃-+40℃/10%RH-90%RH-10℃-+40℃/10%RH-90%RH
Storage Temperature-20℃-+60℃/10%RH-90%RII-20℃-+60℃/10%RH-90%RII
Certificate3C, EMC CLASS-A, ROHS, CQC3C, EMC CLASS-A, ROHS, CQC
Model Type1.9532.6042.9763.91
ApplicationIndoorIndoorIndoorIndoor
Pixel Pitch1.953mm2.604mm2.976mm3.91mm
Pixel SpecificationSMD21515SMD21515SMD2020SMD2020
Module Size250×250mm250×155mm250×200mm250×250mm
Module Resolution128×128 dots96×62 dots84×84 dots64×64 dots
Driving Method / Scanning mode1/32 scan | 1/64 scan1/16 scan1/16 scan1/16 scan
Cabinet Size (L×W×D)1000×250mm | 500×500mm (Support Customization 750×250mm,500×250mm)
Cabinet Resolution512×128 dots | 256×256 dots384×96 dots | 192×192384×96 dots | 168×168256×64 dots | 128×138
Cabinet MaterialDie-cast AluminumDie-cast AluminumDie-cast AluminumDie-cast Aluminum
Net Weight weight26 kg26 kg26 kg26 kg
MaintenanceFront maintenanceFront maintenanceFront maintenanceFront maintenance
Brightness1000 nits | 800nits1200 nits1200 nits1200 nits
Gray Scale14/16 bit14/16 bit14/16 bit14/16 bit
Display Color281.4 trillions(synchronized)281.4 trillions(synchronized)281.4 trillions(synchronized)281.4 trillions(synchronized)
Operation Power Consumption220W~240W/㎡180W~200W/㎡180W~200W/㎡180W~200W/㎡
Average Power Consumption220W/㎡180W/㎡160W/㎡160W/㎡
Max Power Consumption660W/㎡480W/㎡480W/㎡480W/㎡
Control ModeSynchronous | Asynchronous (Option)Synchronous | Asynchronous (Option)Synchronous | Asynchronous (Option)Synchronous | Asynchronous (Option)
Refresh Frequency3840Hz3840Hz3840Hz3840Hz
Support Signal InputDVI, HDMI, RGBHV, YUV, VGA, S-Video, DVI etc.DVI, HDMI, RGBHV, YUV, VGA, S-Video, DVI etc.DVI, HDMI, RGBHV, YUV, VGA, S-Video, DVI etc.DVI, HDMI, RGBHV, YUV, VGA, S-Video, DVI etc.
Control DistanceUTP1403m, Single Mode Fiber 15km; 65535 levels color automaticallyUTP1403m, Single Mode Fiber 15km; 65535 levels color automaticallyUTP1403m, Single Mode Fiber 15km; 65535 levels color automaticallyUTP1403m, Single Mode Fiber 15km; 65535 levels color automatically
Brightness Adjustment30% to 100%30% to 100%30% to 100%30% to 100%
Operating Temperature-20℃ to 60℃-20℃ to 60℃-20℃ to 60℃-20℃ to 60℃
Viewing AngleHorizontal ≥140°·Vertical ≥140°Horizontal ≥140°·Vertical ≥140°Horizontal ≥140°·Vertical ≥140°Horizontal ≥140°·Vertical ≥140°
CertificationCE, EMC, RoHSCE, EMC, RoHSCE, EMC, RoHSCE, EMC, RoHS
Model Type1.8622.51.875
ApplicationIndoorIndoorIndoorIndoor
Pixel Pitch1.86mm2mm2.5mm1.875mm
Pixel SpecificationSMD1010SMD1515SMD2020SMD1515
Module Size320×160 mm320×160 mm320×160 mm240×240 mm
Module Resolution172×86 dot160×80 dot128×64 dot128×128 dot
Driving Method / Scanning mode1/43 scan1/40 scan1/22 scan1/22 scan
Cabinet Size (L×H×D)640×480mm640×480mm640×480mm480×480mm
Cabinet Resolution344×258 dots320×240 dots256×192 dots256×256 dots
Cabinet MaterialDie-cast AluminumDie-cast AluminumDie-cast AluminumDie-cast Aluminum
Sqm weight26 kg26 kg26 kg26 kg
MaintenanceFront maintenanceFront maintenanceFront maintenanceFront maintenance
Brightness1000 nits1000 nits1000 nits1000 nits
Gray Scale14/16 bit14/16 bit14/16 bit14/16 bit
Display Color281.4 trillions (synchronized)281.4 trillions (synchronized)281.4 trillions (synchronized)281.4 trillions (synchronized)
Operation Power Consumption210 – 240W/210%210 – 240W/210%210 – 240W/210%210 – 240W/210%
Average Power Consumption220W / sqm220W / sqm200W / sqm230W / sqm
Max Power Consumption690W / sqm690W / sqm560W / sqm650W / sqm
Control ModeSynchronous / Asynchronous (Option)Synchronous / Asynchronous (Option)Synchronous / Asynchronous (Option)Synchronous / Asynchronous (Option)
Refresh Frequency(Synchronous) 3840Hz(Synchronous) 3840Hz(Synchronous) 3840Hz(Synchronous) 3840Hz
Support Signal InputS-Video, RGBHV, YUV, VGA, DVI, HDMI etc.S-Video, RGBHV, YUV, VGA, DVI, HDMI etc.S-Video, RGBHV, YUV, VGA, DVI, HDMI etc.S-Video, RGBHV, YUV, VGA, DVI, HDMI etc.
Control DistanceUTP: 140m, Single Mode Fiber 15kmUTP: 140m, Single Mode Fiber 15kmUTP: 140m, Single Mode Fiber 15kmUTP: 140m, Single Mode Fiber 15km
Brightness Adjustment65535 levels, pixel color (automatically)65535 levels, pixel color (automatically)65535 levels, pixel color (automatically)65535 levels, pixel color (automatically)
Operating Temperature-30℃ to 60℃-30℃ to 60℃-30℃ to 60℃-30℃ to 60℃
Viewing AngleHorizontal ≥ 140° · Vertical ≥ 140°Horizontal ≥ 140° · Vertical ≥ 140°Horizontal ≥ 140° · Vertical ≥ 140°Horizontal ≥ 140° · Vertical ≥ 140°
CertificationCE, EMC, RoHSCE, EMC, RoHSCE, EMC, RoHSCE, EMC, RoHS
