Micro Mesh (Holo-F 3.9 ) - Separated LED & Driver Architecture
- Structure: Micro Mesh, fixed installation
- Transparency: >80% (front & rear)
- Architecture: Separated LED & Driver
- Custom Shapes & Horizontal Cutting: Supported
Micro Mesh · Holo-F 3.9 · Fixed Installation Solution
Conventional transparent LED screens still block space and limit creative freedom. For brands seeking a truly invisible display integrated with glass, Holo-F 3.9 delivers ultra-high transparency, flexible shaping, and stable fixed installation—engineered for retail, branding, and event environments.

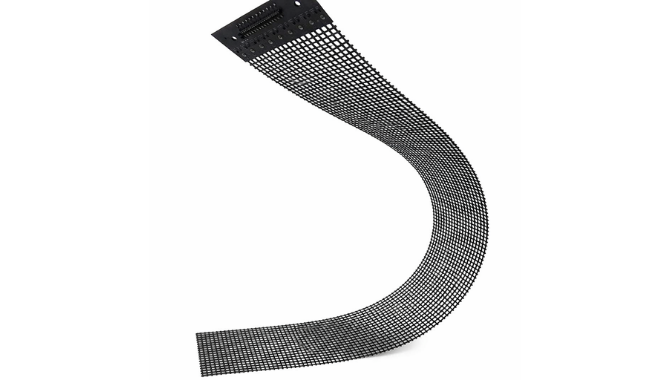

Fixed holographic LED screen based on micro-mesh technology
Designed for permanent glass-mounted and architectural applications
Ultra-High Transparency Visual Effect
Over 80% transparency from both front and rear viewing
Content appears suspended in air without blocking natural light

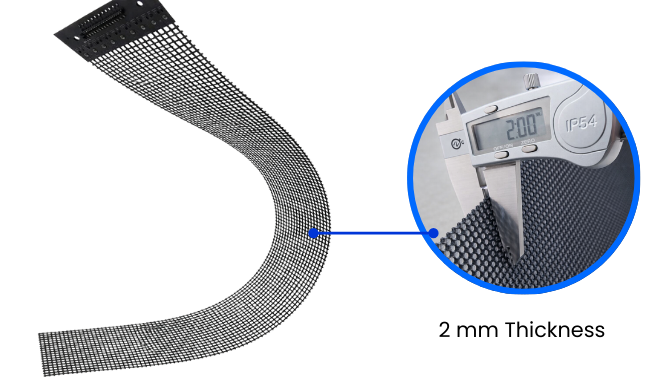

Invisible & Ultra-Thin Structure
Seamlessly bonded to glass surfaces
Clean, frameless appearance suitable for premium commercial spaces
- 2 mm Thickness
Separated LED & Driver Architecture
LED layer and driver system physically separated
Enhances system stability and simplifies long-term maintenance

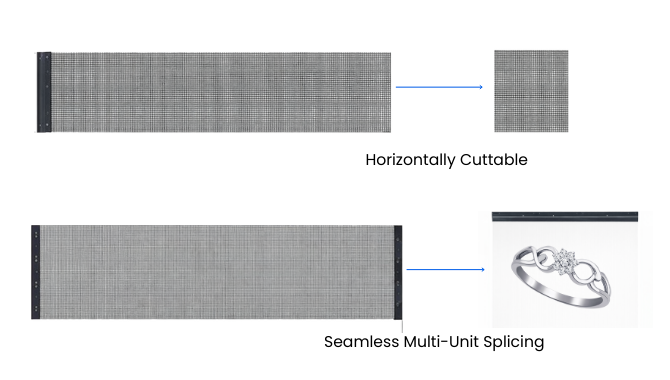

Flexible Module Configuration
Modules can be cut, bent, and horizontally trimmed to fit site-specific dimensions
Enables curved surfaces, irregular outlines, and precise width adjustment
Ideal for glass walls, columns, and non-standard retail windows
Visual Advantage Over Standard Transparent LED
Higher transparency than conventional transparent LED screens
Greater shaping flexibility than rigid glass LED panels
More discreet integration into architectural environments
Design & Performance Highlights
- Specification
- Video Show
- Case Show
| Product | Holo-Micro Mesh Fixed | ||
| Model | P3.91-1000 | P3.91-1200 | P3.91-1500 |
| Pixel Pitch | Horizontal: 3.91mm/Vertical: 3.91mm | ||
| Pixel Density | 65536dot/m² | ||
| Visual Transparency | >80% | ||
| Module Size | 1025mm×250mm | 1200mm×250mm | 1500mm×250mm |
| Weight | 1.04kg | 1.11kg | 1.21kg |
| Resolution Ratio | 256×64pix | 306×64pix | 384×64pix |
| LED Control System | Synchronous/Asynchronous | ||
| Brightness | 3500cd/m² | ||
| Viewing Angle | Horizontal 160, Vertical 140 | ||
| Display Thickness | 1.8mm | ||
| Average Lifespan | ≥100000 hours | ||
| Gray Scale | ≥16(bit) | ||
| Drive Mode | Static | ||
| Average Fault-Free Working Time | ≥10000 hours | ||
| Maximum Power Consumption | 1600W/m² | 1335W/m² | 1068W/m² |
| Average Power | 640W/m² | 534W/m² | 428W/m² |
| Power Supply Requirements | 110V ~ 220V±10%; AC50HZ | ||
| Operation Temperature | -20°C ~ +50°C | ||
| Working Humidity | 20% RH ~ 85% RH | ||
| Storage Temperature | -20°C ~ +60°C | ||
| Storage Humidity | 10%RH ~ 85%RH | ||
| Installation Method | Wall mount installation, glass adhesive | ||
Commercial Application Scenarios
Create eye-catching window content while maintaining full transparency and open sightlines for premium retail environments.
Deliver floating visuals that attract attention without blocking booth layout or visitor flow.
Enhance brand image with invisible digital content integrated seamlessly into architectural glass spaces.
