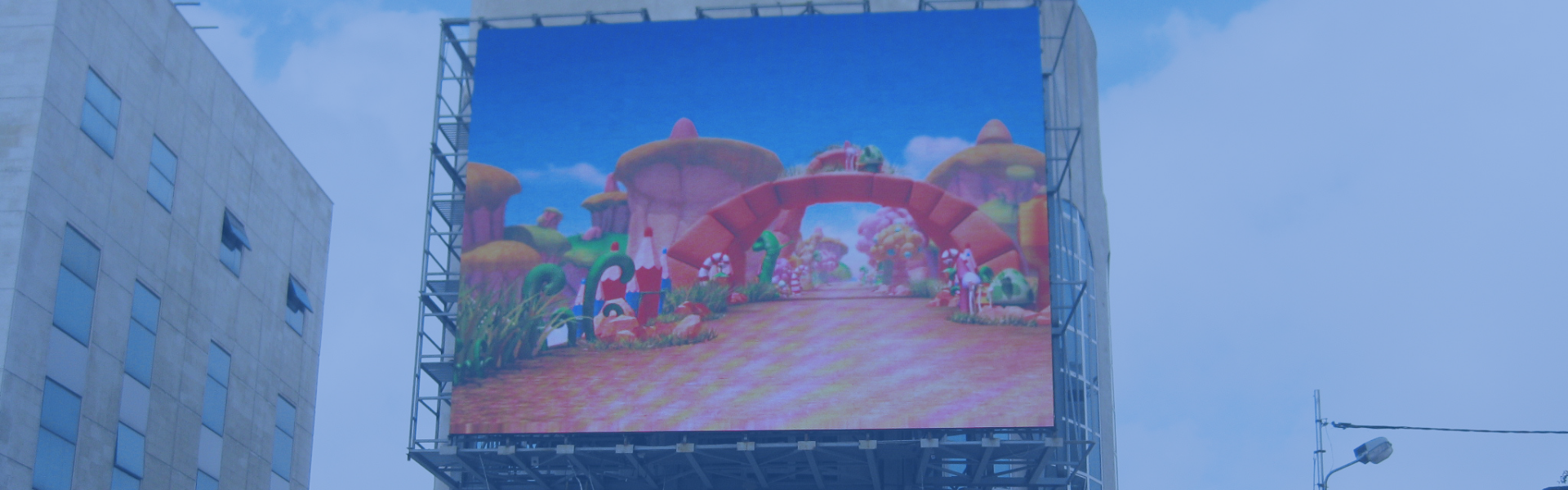

Front Services LED Display
This front services LED display allows all key components—LED modules, power supplies, and control cards—to be serviced entirely from the front.
- It is optimized for projects where rear space is unavailable or structurally impossible.
- Full front maintenance without rear clearance
- Ideal for wall-mounted, façade-integrated, and architectural LED projects
- Reduced service time and long-term maintenance cost

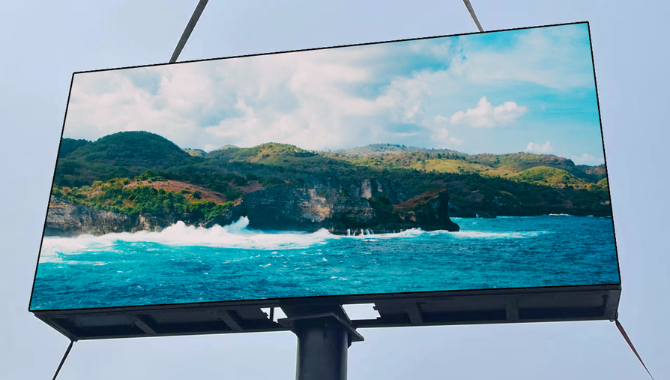

Engineered for Large-Scale Outdoor Projects
This solution is purpose-built for large-format outdoor LED display systems, where reliability, waterproofing, and structural stability are critical.
- Supports ultra-wide and ultra-high screen configurations
- Cabinet structure designed for long-term outdoor use
- Stable operation for continuous commercial and public displays
Front Maintenance LED Display Wins
Flexible Form for Architectural Integration
Front access enables LED displays to become part of the building, not an add-on.
- Flush-mounted building façades
- Large flat walls without maintenance corridors
- Custom structural designs for landmark projects

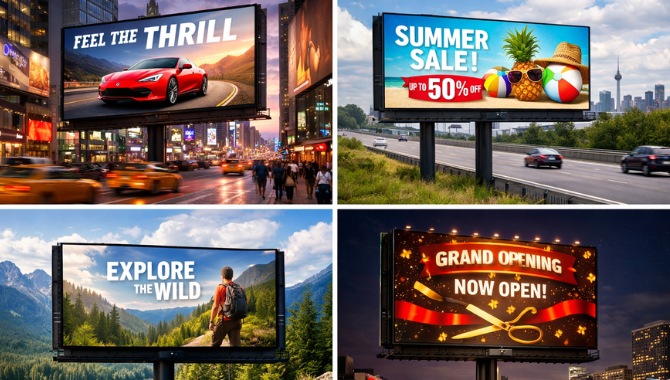

Commercial Performance for High-Impact Use
Optimized for environments where visibility, durability, and consistency define success.
- Outdoor advertising and DOOH networks
- Commercial complexes and city landmarks
- Stadium surroundings and large public venues
- Brand-driven large retail exteriors

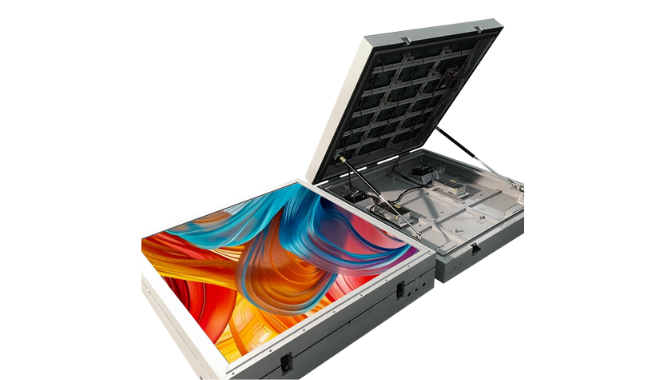

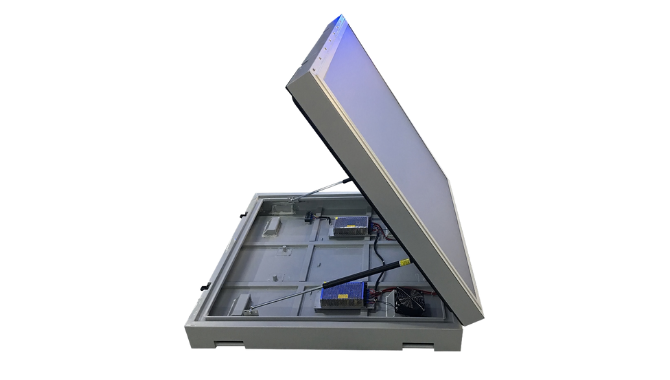

Front Maintenance as a Core Advantage
Front service is not an add-on—it is the foundation of this system.
- Modules removed from the front using professional locking mechanisms
- Power supply and receiving card accessible from the front side
- Maintenance completed without dismantling surrounding structures
- Safer servicing for high-altitude or wall-mounted installations

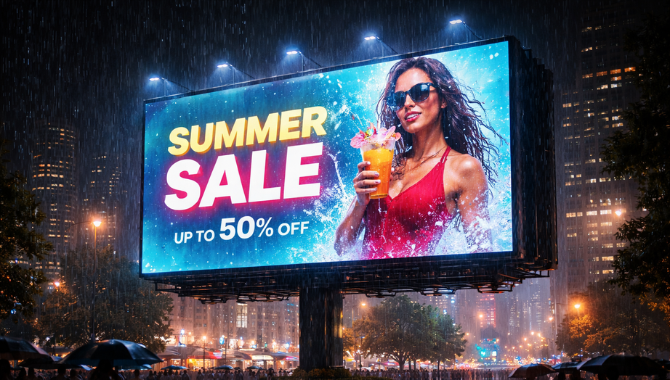

Outdoor-Grade Protection and Stability
Built to withstand harsh environments while maintaining image quality.
- High waterproof rating for outdoor applications
- Dust-resistant and corrosion-resistant cabinet design
- Stable brightness and color performance over long operation cycles
Designed for temperature variations and continuous use

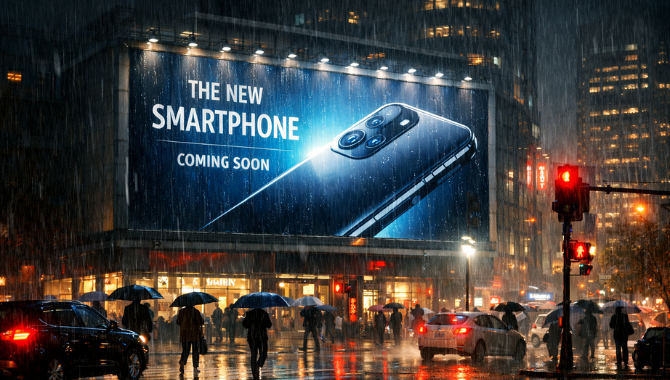

Optimized for large-format screens where uniformity and clarity matter.
- High brightness output suitable for direct sunlight
- High refresh rate for smooth video and camera-friendly visuals
- Wide viewing angle for open public spaces
Uniform color calibration across large screen areas

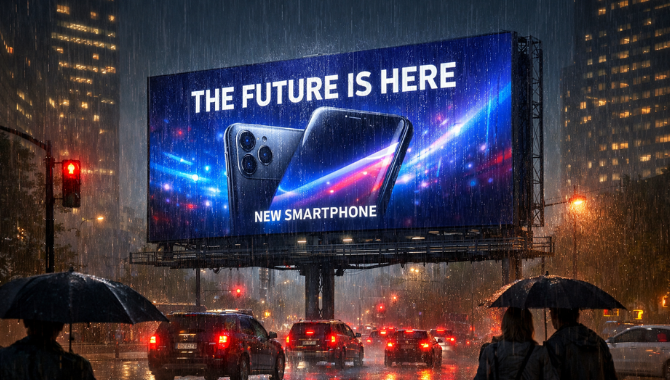

This front services LED display is widely applied in:
- Large outdoor advertising projects
- Urban landmark LED façades
- Commercial real estate developments
- Stadium and public infrastructure displays
- Long-term government or municipal projects
- Specification
- Case Show
| Model name | FM-P4.8 | FM-P5.95 | FM-P6.67 | FM-P8 | FM-P10 | FM-P16 |
| Pixel pitch | 4.8mm | 5.95mm | 6.67mm | 8mm | 10mm | 16mm |
| Module size(mm) | 250*250 | 250*250 | 320*320 | 320*320 | 320*320 | 320*320 |
| Resolution of module(dots) | 52*52 | 42*42 | 48*48 | 40*40 | 32*32 | 20*20 |
| Density of pixel(dots) | 2704 | 1764 | 2304 | 1600 | 1024 | 400 |
| LED Type | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535/DIP346 | SMD3535/DIP346 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Gray scale | 14 | 14 | 14 | 14 | 14 | 14 |
| Best viewing distance | 5 | 6 | 7 | 8 | 10 | 16 |
| Horizontal viewing angle | 140 | 140 | 140 | 140 | 140 | 140 |
| Vertical viewing angle | 140 | 140 | 140 | 140 | 140 | 140 |
| Driving method | 13S | 7S | 6S | 5S | 4S | Static |
| Brightness(CD/㎡) | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 |
| Frame frequency | 50~60HZ | 50~60HZ | 50~60HZ | 50~60HZ | 50~60HZ | 50~60HZ |
| Refresh rate(HZ) | 1920 | 1920 | 1920 | 1920 | 1920 | 1920 |
| Operating voltage | 110-220V | 110-220V | 110-220V | 110-220V | 110-220V | 110-220V |
| Storage temperature | -40℃-+65℃ | |||||
| Working temperature | -20℃-+55℃ | |||||
| MTBF | ≥10,000 hours | |||||
| Life span | ≥10,000 hours | |||||
| Control method | Asynchronization/Synchronization | |||||
| Control system | Novastar/Linsn | |||||
