Indoor Seamless LED Poster Display
Optimized for environments where viewers are close to the screen and visual detail is critical.
Typical applications include:

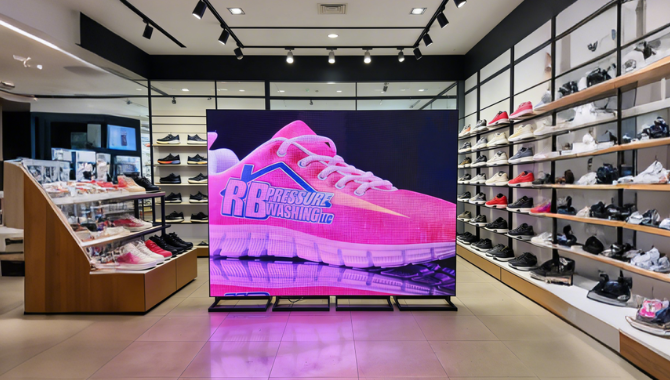

• Retail stores and shopping malls
• Corporate lobbies and showrooms
• Hotels, museums, and galleries
• Exhibition booths and brand pop-up spaces
Recommended pixel pitch: P1.86 / P2 / P2.5
Brightness range: 800–1000 cd/m²
Product Overview
The indoor seamless LED poster is an all-in-one LED display solution that integrates LED modules, control system, power supply, and structural cabinet into a single vertical unit.
Unlike LCD posters, it removes visible frame gaps.
Unlike modular LED walls, it reduces installation time, structural requirements, and on-site complexity.
This makes it a practical solution for businesses that want professional LED visuals with flexible deployment and long-term stability.
Specifications
- Indoor Seamless LED Poster Specifications
| Model Type | P1.86 | P2 | P2.5 |
| Pixel pitch | 1.86mm | 2mm | 2.5mm |
| Destiny | 288,906dots /SQM | 250,000 dots /SQM | 160,000 dots/SQM |
| LED Type | GOB | GOB | GOB |
| Pixel type(R / G / B) | 1R1G1B (3-in-1) | 1R1G1B (3 in 1) | 1R1G1B (3-in-1) |
| Module size | 320×160 mm | 320×160 mm | 320×160 mm |
| Module Resolution | 172×86pixel | 160*80pixel | 128×64pixel |
| Sreen Size (H*W) | 640×1920 mm | 640*1920mm | 640×1920 mm |
| Feet Size | 2.10×6.3 ft | 2.10×6.3 ft | 2.10×6.3 ft |
| Screen Resolution | 344 * 1032 pixel | 320 * 960 pixel | 256×768 pixel |
| Frame Size | 2018mm(H)*640mm(W)*45mm(T) | 2018mm(H)*640mm(W)*45mm(T) | 2018mm(H)*640mm(W)*45mm(T) |
| Case Material | Aluminum | Aluminum | Aluminum |
| Weight | 40 kg/unit | 40 kg/unit | 40 kg/unit |
| Drive mode | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Viewing Distance | ≥ 1.8 m | ≥ 2 M | ≥ 2.5 m |
| Brightness | 800-1000 cd/m² | 800-1000 cd/m² | 800-1000 cd/m² |
| Viewing Angle | 140°(H)/140°(V) | 140° (H)/140°(V) | 140°(H)/140°(V) |
| Refresh rate | 3840/7680 HZ Optional | 3840/7680HZ Optional | 3840/7680 HZ Optional |
| Input voltage | AC 100–230 V | AC 100–230 V | AC 100–230 V |
| Maximum Power Consumption | 450 W/unit | 450 W/unit | 450 W/unit |
| Average Power Consumption | 150W/unit | 150W /unit | 150 W/unit |
| Control method: | Syn/Asyn (WiFi/USB/LAN/HDMI) | Syn/Asyn (WiFi/USB/LAN/HDMI) | Syn/Asyn (WiFi/USB/LAN/HDMI) |
| Splicing method | HDMI automatic splicing | HDMI automatic splicing | HDMI automatic splicing |
| Temperature Operating (℃) | -40° ~ +75° C | -40° ~ +75° C | -40° ~ +75° C |
| Working Humidity | 10%–95% RH | 10%–95% RH | 10%–95% RH |
| IP Rating | IP54 (front), IP43 (rear) | IP54 (front), IP43 (rear) | IP54 (front), IP43 (rear) |
| Package | Flight case (side opening) | Flight case (side opening) | Flight case (side opening) |
| Application | Indoor / Semi-Outdoor | Indoor / Semi-Outdoor | Indoor / Semi-Outdoor |
| Certificate | CE / ROHS / FCC | CE / ROHS / FCC | CE / ROHS / FCC |
Indoor Seamless LED Poster Display
Designed for retail brands, corporate spaces, exhibitions, and rental projects that require high image clarity, fast setup, and a clean, borderless appearance—without the complexity of traditional LED video walls.
Borderless Visual Experience
Create a continuous image surface with no bezels or visual interruptions, ideal for premium brand presentation.
Plug-and-Play Commercial Design
Integrated structure enables fast installation and immediate operation with minimal technical setup.
Scalable for Future Projects
Use a single unit or combine multiple posters into a larger display as your needs grow.

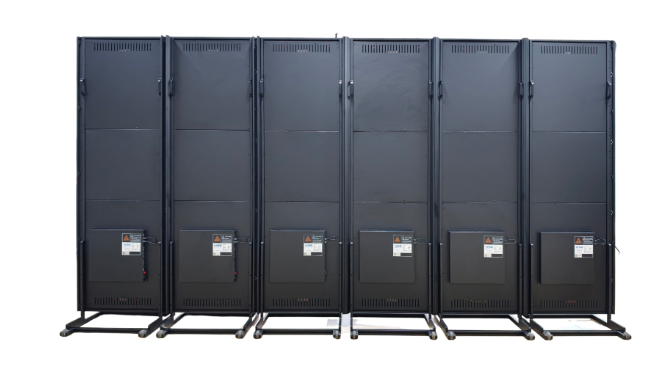

Vertical and horizontal cascading allows flexible layout expansion while maintaining consistent brightness and color.
Golden 16:9 Aspect Ratio
Standard 16:9 ratio ensures compatibility with common video content formats.
This simplifies content creation and avoids additional resizing or cropping work.
Applications
- Case Show
- Video Show
Product Categories
Experience crystal-clear visuals in your retail or showroom space. The P1.86 poster delivers premium image quality that elevates brand perception and engages customers up close.
Perfect for versatile indoor applications, the P2 LED poster combines high-quality visuals with practical affordability, making it ideal for stores, exhibitions, and corporate environments.

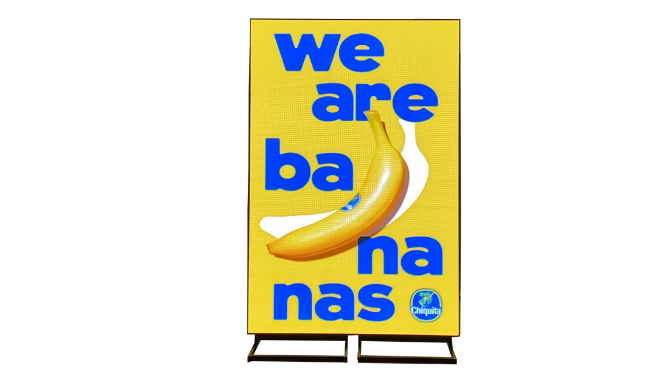

Maximize screen size without compromising visibility. The P2.5 LED poster is ideal for large retail areas, event venues, and exhibition halls, offering impactful visuals while controlling costs.
It offers true seamless visuals with significantly reduced installation complexity and structural requirements.
Yes. Synchronized cascading ensures stable signal transmission and consistent image quality.
Commercial-grade LEDs are designed for long-term operation, typically exceeding 50,000 hours.
Yes. Cabinet size, brightness, control system, and structure can be customized.
Yes. The integrated design and easy maintenance make it suitable for repeated installation and relocation.
