Micro Mesh LED Screen (P10.4)
High-Brightness Transparent Display for Outdoor Facades
Clear Visual Performance – P10.4 pixel pitch delivers balanced clarity for medium to long viewing distances.
High Transparency Design – Open mesh structure maintains building visibility and natural light.
Flexible & Lightweight – Suitable for large-scale exterior installations with reduced structural load.
High-Brightness Outdoor Mesh LED Display

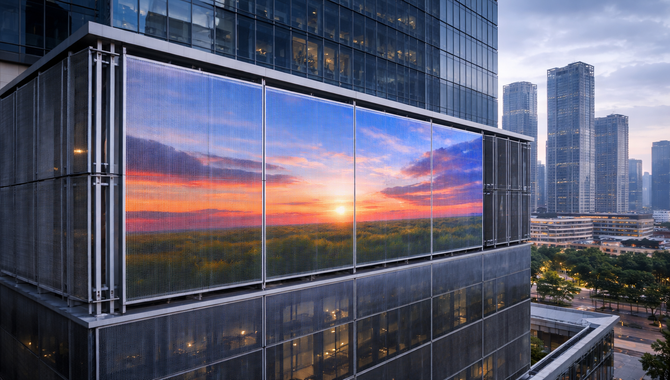

P10.4 mesh LED display is designed for outdoor building facades, delivering strong brightness and clear visuals while maintaining an open mesh structure for light, airflow, and minimal visual obstruction.

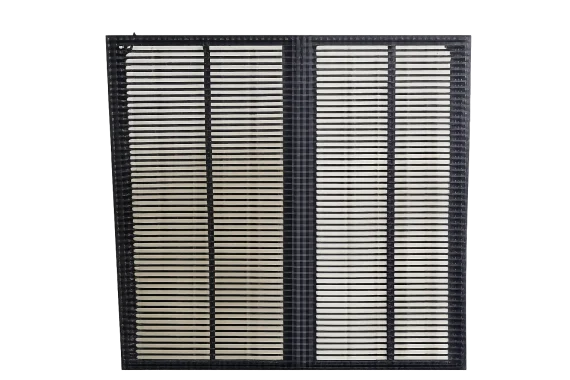

Lightweight Mesh Structure
The open-grid mesh design significantly reduces overall weight and wind resistance, making P10.4 ideal for large building façades while minimizing support structure requirements and installation cost.
High Brightness for Outdoor Viewing
Engineered for outdoor environments, P10.4 provides strong brightness and stable visibility under daylight conditions, ensuring content remains clear and impactful on commercial exteriors.
Reliable Weatherproof Performance
Designed for long-term outdoor use, the mesh modules offer dependable protection against rain, dust, and changing weather conditions, supporting stable operation in complex environments.
Flexible Installation Options
Modular panels support flat or curved mounting and can be adapted to different architectural layouts, allowing seamless integration with modern building designs.
- Specification
- Case Show
| Product | LED Curtain SMD |
| Pixel Pitch | 10.4-10.4mm |
| LED lamp bead model | SMD2727 |
| Pixel composition | 1R1G1B |
| module Size(W*H) | 500x250mm |
| module Resolution(W*H) | 48×24 |
| Density of Pixel (dots/m²) | 9216 |
| Brightness(cd/m²) | 5000 |
| Scan Method | 1/2 Scan |
| Panel Size(W*H) | 1000x1000mm |
| Panel Weight (kg/m²) | 15kg |
| Panel Material | Aluminum |
| Refresh rate | 3,840Hz |
| Viewing angle | 140°/140° |
| Transparency rate | 60% |
| module/Panel Fixed Way | Rear Access |
| IP Grade | IP65 |
| Signal Input | HDMI, DVI |
| Input Voltage | AC100V – AC240V @ 50Hz/60Hz |
| Maximum power (W/m²) | 800 |
| Average power (W/m²) | 240 |
| Operating environment | -20℃ ~ 50℃ 10%~90%RH |
| Working time | ≥7×24hrs ≥100000Hours |
