P15.625 Outdoor LED Mesh Display
- High Brightness – Clear visibility for large outdoor façades
- Lightweight Design – Low wind load, easy structural integration
- Weatherproof – Stable performance in outdoor environments
Outdoor LED Mesh Screen
The P15.625 Outdoor LED Mesh Screen is a flat, open-grid LED display that delivers high-brightness outdoor visuals while preserving transparency and airflow. It is designed for permanent building facades, storefront glass walls, and large commercial installations where visibility, durability, and lightweight installation are mission-critical.
Daylight-Ready High Brightness
Engineered to remain legible and vibrant under direct sunlight, ensuring impactful visual performance on outdoor façades.

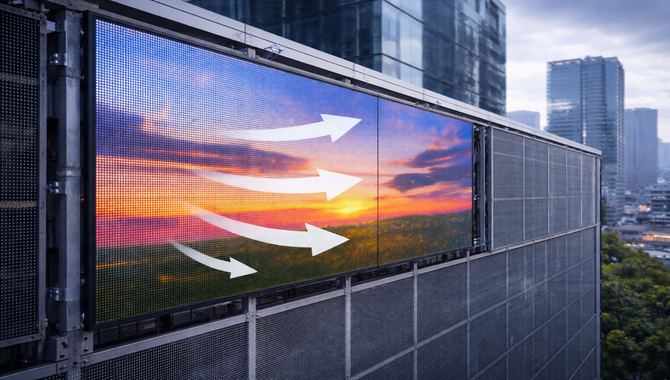

Lightweight Mesh Structure
Mesh design significantly reduces weight and wind load compared with traditional LED cabinets, simplifying support structure requirements and lowering installation cost.
Reliable Weatherproof Design
Built for long-term outdoor use with robust waterproof protection (IP65+ equivalent), stable performance in rain, dust, and changing climates.

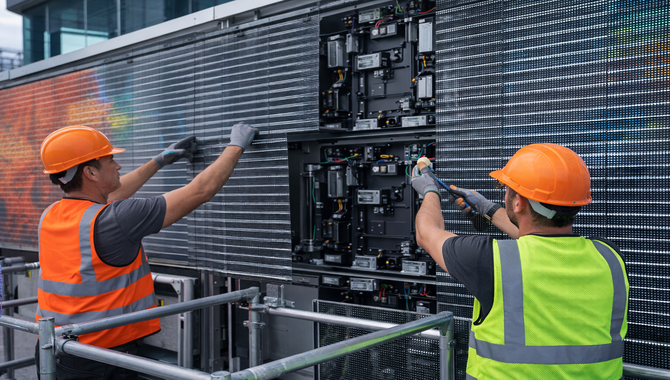

Efficient Installation & Maintenance
Modular panels enable rapid on-site assembly and easy routine maintenance, reducing project labor and downtime.
- Specification

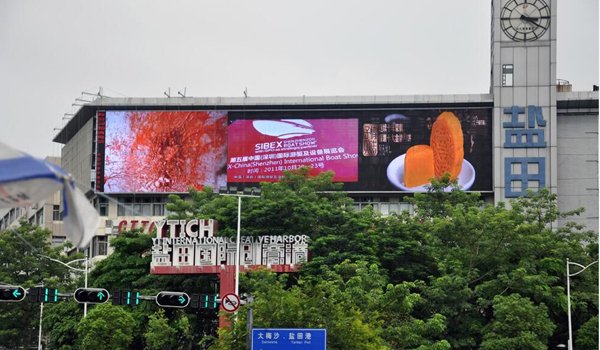

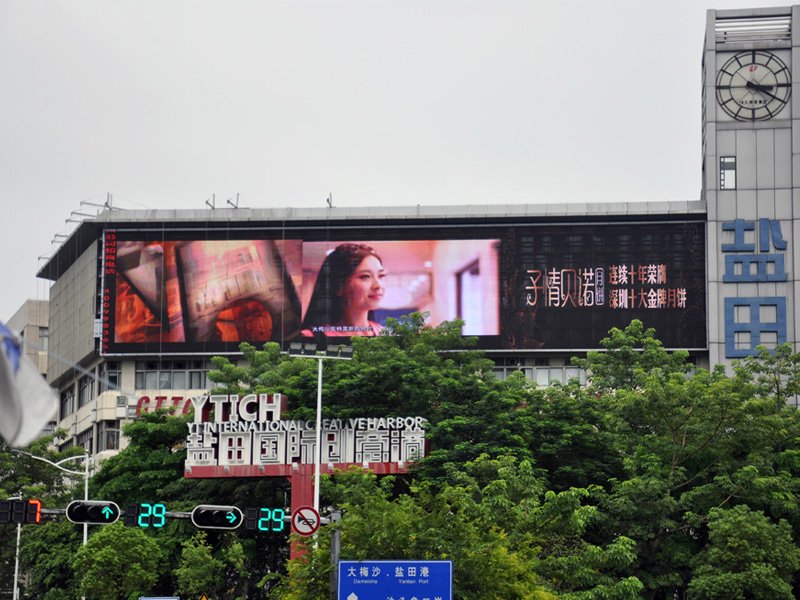

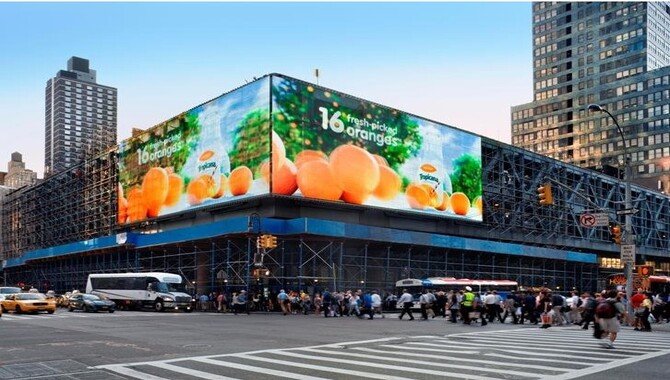

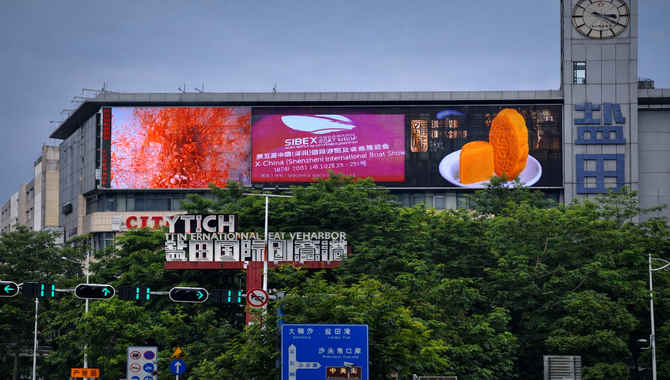

- Case Show
| Product | LED Curtain |
| Model Type | P15.625 |
| Pixel pitch | 15.625mm |
| Destiny | 4096 dot/ m2 |
| LED Type | DIP346 |
| Cabinet type: | Aluminum |
| Pixel type(R / G / B) | 1R1G1B, DIP346 |
| Cabinet Size (H*W) | 500*1000mm |
| Cabinet Resolution | 32*64 pixel |
| Case Material | Aluminum |
| Weight | <= 15KG/m2 |
| Transparent Ratio(%) | 0.5 |
| Drive mode | Static |
| Viewing Distance | 50-300 M |
| Brightness | ＞7000 nit |
| Viewing Angle | 110°(Horizontal )/ 50°(Vertical ) |
| Refresh rate | ≥1920Hz |
| Input voltage | AC 220/110±15% |
| Maximum Power Consumption | 450W |
| Average Power Consumption | 200W |
| Control method: | Synchronous |
| Temperature Operating (℃) | -40°～+75° |
| Working Humidity | 10%–95%RH |
| IP Rating | IP68 |
| Application | Outdoor |
| Certificate | CE/ ROHS /FCC |
| Application | Outdoor |
Typical Applications

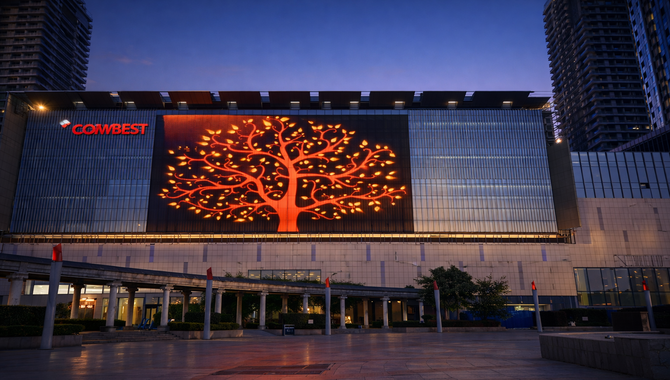

Permanent exterior installation on commercial buildings and towers.
Dynamic digital signage that complements architectural form.
Transparent LED mesh for brand visuals without blocking interior sightlines.
