Multifunctional Conference Machine (LED TV)
- Product: COB All-in-One LED TV
- Sizes: 108″, 135″
- Pixel Pitch Options: P0.625 / P0.78 / P1.25 / P1.56
- Resolution: 2K (1080p) & 4K (3840×2160)
- Technology: Flip Chip COB for higher uniformity & contrast
Cob All-in-One (LED TV)
Traditional LED walls require complex stacking and calibration, while LCD video walls lack scale and seamless visuals. COB All-in-One LED TV delivers large-format, plug-and-play LED with superior image consistency and minimal setup—built for commercial deployment and fast turnover.
Installation & Maintenance

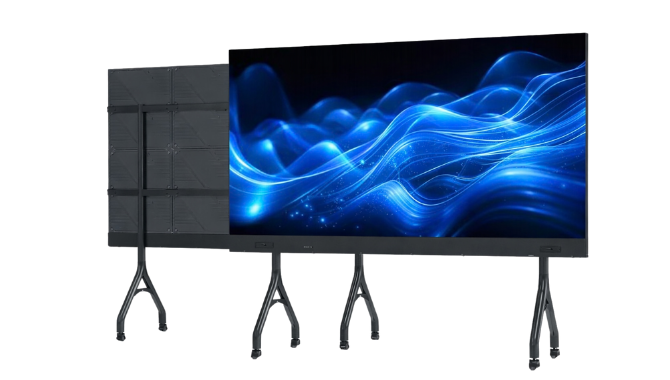

COB Screen Integration
Different from traditional SMD tiles, COB (Chip-On-Board) technology ensures:
High display uniformity
Improved black depth and contrast across the panel
Robust surface less prone to impact or dust
Visual Performance
- Supports 2K and 4K resolution
- Wide 160° viewing angle for group environments
- High brightness range (600–1000 nits) for indoor use
Durable & Serviceable Design
- IP54 front cleanable surface
- Front access modules for quick service
- Industrial-grade components for high uptime

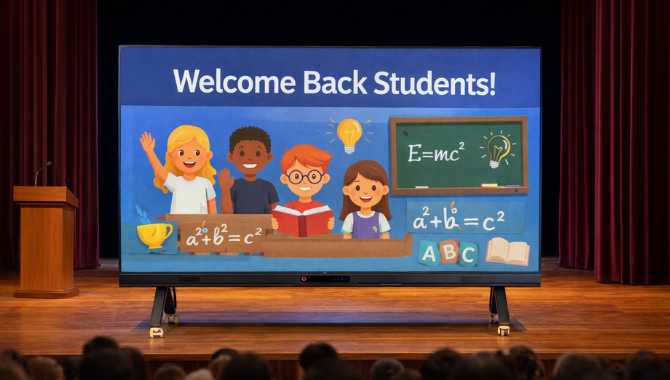

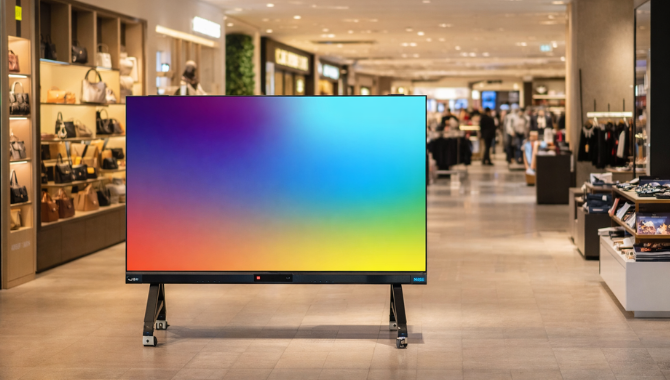

Application Scenarios
Visual Performance
Large Format
Built-in Audio
Zero tile seams
Flip Chip COB
- COB All-in-One LED TV – 2K Resolution Specifications
- COB All-in-One LED TV – 4K Resolution Specifications
| Model | 55 inch | 80 inch | 108 inch | 135 inch | 162 inch |
|---|---|---|---|---|---|
| Pixel Pitch (mm) | P0.625 | P0.9375 | P1.25 | P1.56 | P1.875 |
| Screen Size (mm) | 1200 × 675 | 1800 × 1012.5 | 2400 × 1350 | 3000 × 1687.5 | 3600 × 2025 |
| Resolution | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 |
| Brightness | 100–600 nits (adjustable) | 100–600 nits (adjustable) | 100–600 nits (adjustable) | 100–600 nits (adjustable) | 100–600 nits (adjustable) |
| Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Contrast Ratio | 10,000:1 (no ambient lighting) | Same | Same | Same | Same |
| Input Voltage | AC 100–240V, 50/60Hz | Same | Same | Same | Same |
| Operating System | Android / Windows 10 (Optional) | Same | Same | Same | Same |
| Interface | USB, HDMI, Audio, Multiple Expansion Ports | Same | Same | Same | Same |
| Model | 108 inch | 135 inch | 162 inch |
|---|---|---|---|
| Pixel Pitch (mm) | P0.625 | P0.78 | P0.9375 |
| Screen Size (mm) | 2400 × 1350 | 3000 × 1687.5 | 3600 × 2025 |
| Resolution | 3840 × 2160 | 3840 × 2160 | 3840 × 2160 |
| Brightness | 100–600 nits (adjustable) | 100–600 nits (adjustable) | 100–600 nits (adjustable) |
| Viewing Angle | 160° | 160° | 160° |
| Contrast Ratio | 10,000:1 (no ambient lighting) | Same | Same |
| Input Voltage | AC 100–240V, 50/60Hz | Same | Same |
| Operating System | Android / Windows 10 (Optional) | Same | Same |
| Interface | USB, HDMI, Audio, Multiple Expansion Ports | Same | Same |
What’s the difference between 2K and 4K models?
4K offers higher resolution and finer detail, suitable for closer viewing or premium visual areas.
Can I mount this on a stand or wall?
Yes, NSELED supports wall-mount and mobile stand options per project.
Is this suitable for rental use?
Yes — rugged build, front access, and COB surface design make it ideal for frequent install/strike cycles.
