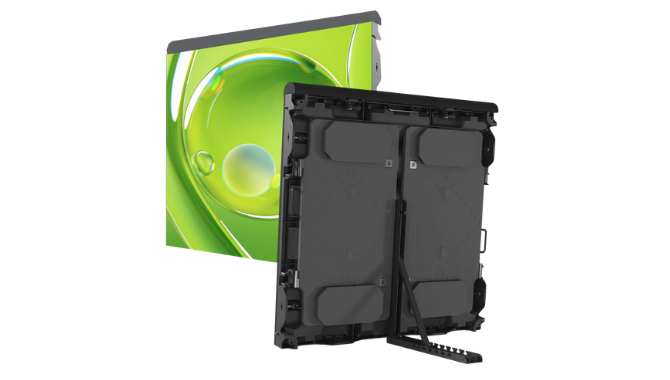

Standard Series (960 × 960 mm)
NSELED LED perimeter display Standard Series (960×960 mm) delivers high-brightness performance, fast installation, IP65 protection, and reliable branding impact for stadiums, events, rental projects, and retail-driven commercial spaces.
LED Perimeter Display Standard Series (960 × 960 mm)
When your venue needs impact, speed, and sponsor visibility, a standard screen is not enough. NSELED led perimeter display Standard Series is built for high-traffic commercial use, fast deployment, and consistent visual performance across sports, events, and branding projects.
Product features
Stable structure
- High-flatness cabinet design
- Clean splicing with reduced visual gaps
- Secure locking for reliable installation

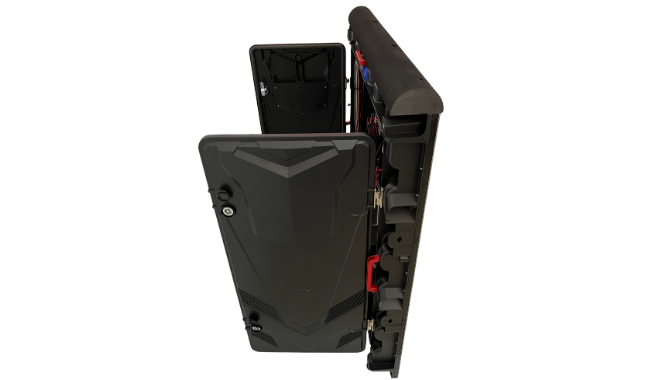

Fast maintenance
- Rear service options
- Easier module access for field support
- Lower downtime during project operation
Performance-focused
- High brightness for strong daylight visibility
- High refresh rate for smooth video playback
- Stable gray scale for better image depth
Friendly deployment
- Standard cabinet size for repeat projects
- Easy to stack, install, and store
- Suitable for fixed installation or rental circulation

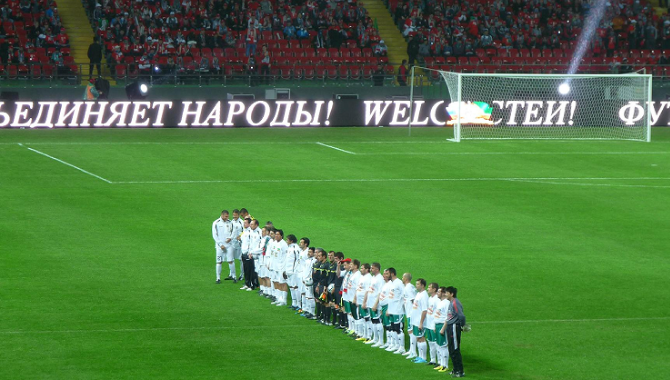

Built for visibility. Ready for business.
One cabinet platform. Three priorities solved: shape, usage, and return on investment. The 960 × 960 mm format helps teams build clean, uniform perimeter lines, while the system supports the fast turnaround demanded by rental and event work.
- Shape / Form: clean perimeter alignment, consistent cabinet geometry, stable visual continuity

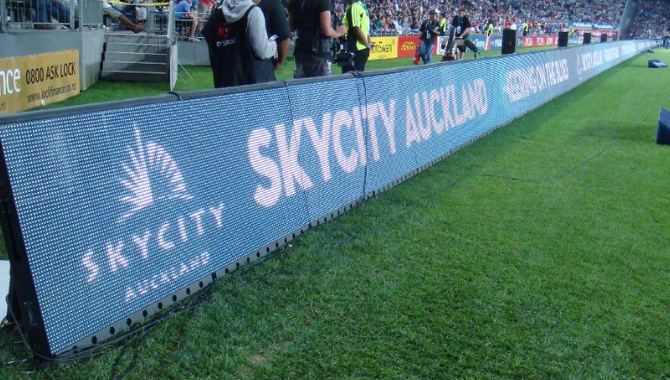

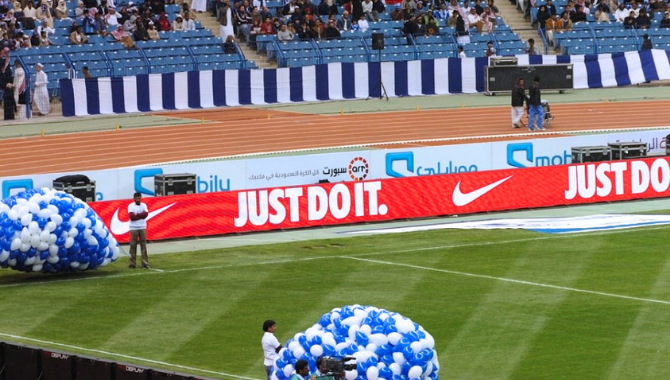

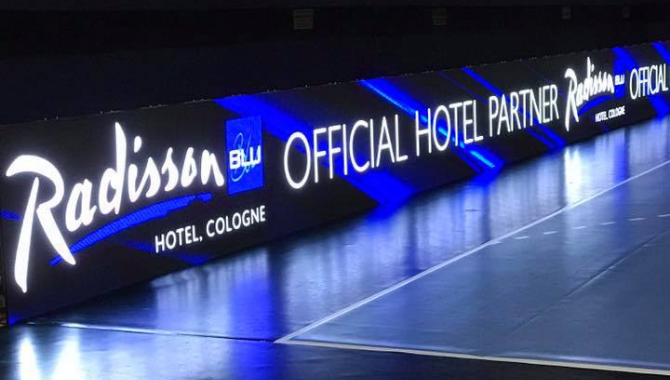

- Commercial Use: stadium branding, live events, rental inventory, retail campaigns, and sponsor exposure
- B2B Value: faster installation, easier maintenance, and a standard format that simplifies project planning

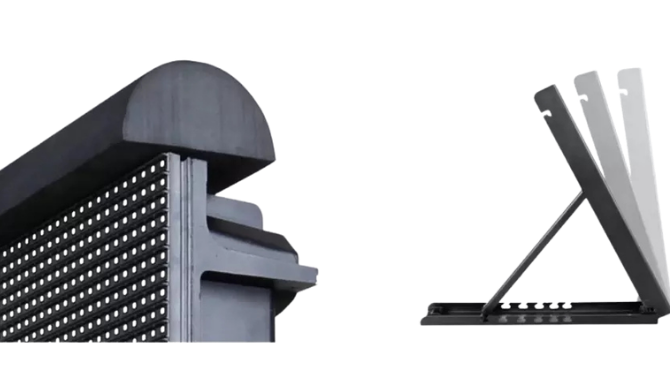

Why the Standard 960×960 series performs?
This is the kind of display buyers choose when they need more than brightness. They need a cabinet that installs efficiently, survives regular handling, and delivers a premium visual surface that keeps brand messages readable from a distance.
- Standard 960 × 960 mm cabinet for streamlined project planning
- Magnesium alloy structure for strength, flatness, and transport durability
- Outdoor-ready protection for demanding venue conditions
- Fast assembly/disassembly for rental and event operations
- High-contrast image output for sponsor visibility and brand recall
- Specification
- Case Show
- Video Show
| Model Type | OS-5 | OS-6.67 | OS-8 | OS-10 |
| Pixel Pitch | 5 mm | 6.67 mm | 8 mm | 10 mm |
| Pixel Density | 35,200 dots/㎡ | 22,500 dots/㎡ | 15,625 dots/㎡ | 10,000 dots/㎡ |
| Module Size | 320*320mm | 320*320mm | 320*320mm | 320*320mm |
| Cabinet Size 1 | 960*960mm | 960*960mm | 960*960mm | 960*960mm |
| Cabinet Resolution | 192*192 | 144*144 | 120*120 | 96*96 |
| Cabinet Size 2 | 960*1280mm | 960*1280mm | 960*1280mm | 960*1280mm |
| Cabinet Resolution | 192*256 | 144*192 | 120*160 | 96*128 |
| Cabinet Weight | 28/37kg | 28/37kg | 28/37kg | 28/37kg |
| Brightness | ≥5000 nits | ≥5000 nits | ≥5000 nits | ≥5000 nits |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
| Power Consumption (Max) | 600W | 600W | 600W | 600W |
| Power Consumption (Avg) | 200W | 200W | 200W | 200W |
| Application | Outdoor | Outdoor | Outdoor | Outdoor |
| Case Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Viewing angle | Horizontal ≥140° – Vertical ≥140° | Horizontal ≥140° – Vertical ≥140° | Horizontal ≥140° – Vertical ≥140° | Horizontal ≥140° – Vertical ≥140° |
| Input Voltage | AC 100~240V 50/60Hz | AC 100~240V 50/60Hz | AC 100~240V 50/60Hz | AC 100~240V 50/60Hz |
| Grey Scale | 14 bit | 14 bit | 14 bit | 14 bit |
| Refresh Rate | 1920Hz/3840HZ | 1920Hz/3840HZ | 1920Hz/3840HZ | 1920Hz/3840HZ |
| Control method | Sync&Async | Sync&Async | Sync&Async | Sync&Async |
| Working Temperature | – 10℃~+40℃ | – 10℃~+40℃ | – 10℃~+40℃ | – 10℃~+40℃ |
| Working Humidity | 10%RH-90%RH | 10%RH-90%RH | 10%RH-90%RH | 10%RH-90%RH |
| Services access | Front service | Rear service | Rear service | Rear service |
Where it fits
In-store campaigns, product launches, and premium visual storytelling
Our LED perimeter display Standard Series is designed for outdoor and indoor commercial venues, including stadiums, event stages, retail spaces, and exhibition areas. The IP65 protection rating ensures reliable performance under sun, rain, or dust.
Yes. NSELED supports flexible pixel pitch options (P2.5–P10) to balance image clarity, viewing distance, and budget. This allows integrators and brand teams to optimize visuals for sports, events, or retail campaigns.
The 960 × 960 mm standard cabinet design simplifies assembly and alignment. Maintenance is convenient with front or rear service options, minimizing downtime for rental events or permanent installations.
Absolutely. With lightweight magnesium alloy cabinets and fast-locking mechanisms, the Standard Series is ideal for rental companies and event production teams, allowing frequent setup, transport, and redeployment.
