Rental RX LED Display
Pixel pitch: P1.9–P4.81, scalable for medium to large outdoor screens.
Brightness up to 6000 nits with wide viewing angles.
IP65-rated cabinets: Resistant to dust, rain, and outdoor elements.
Rental LED Display - RX Series
Rental RX Series LED Display is engineered for high-frequency rental use — lighter cabinets, sharper images, and smoother installations that protect both timelines and profit.

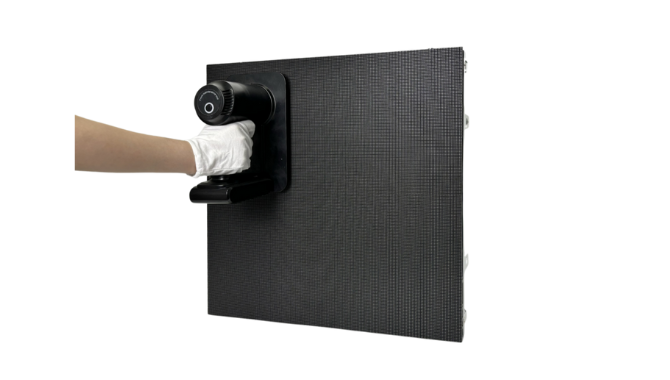

Lightweight & Rental-Friendly Design
Aluminum cabinet structure for easy handling
Ideal for frequent loading, unloading, and stacking

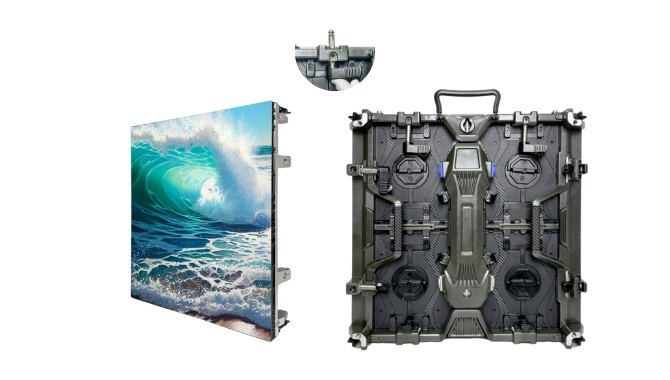

Fast Installation System
- Quick-lock mechanism for rapid assembly
- Reduced manpower and installation time
High-Definition Visual Performance
- Fine pixel pitch options for close-viewing environments
- High brightness (cd/m²) for indoor and outdoor visibility
- Smooth motion with high refresh rate (≥3840Hz)

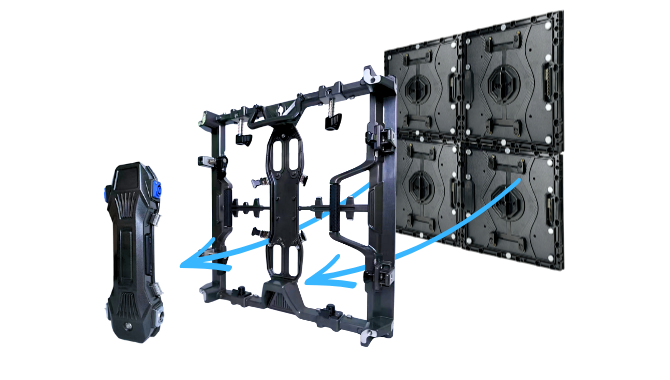

Efficient Heat Dissipation
Advanced thermal design ensures stable performance and reliable operation during long-hour events and continuous use.
- Specification
- Video Show
- Case Video
| Model Type | IR-P1.9 | IR-P2.976 | IR-P3.91 | OR-P3.91 | OR-P 4.81 |
| Pixel pitch | 1.9mm | 2.976mm | 3.91mm | 3.91mm | 4.81mm |
| Destiny | 262,114 Dots/M2 | 112,896 Dots/M2 | 655,36 Dots/M2 | 655,36 Dots/M2 | 43,264 Dots/M2 |
| LED Type | SMD1010 | SMD2121 | SMD2121 | SMD1921 | SMD2727 |
| Pixel type(R / G / B) | 1R1G1B (3 in 1) | 1R1G1B (3 in 1) | 1R1G1B (3 in 1) | 1R1G1B (3 in 1) | 1R1G1B (3 in 1) |
| Module size | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Module Resolution | 128*128 Pixel | 84*84 Pixel | 64*64 Pixel | 64*64 Pixel | 52*52 Pixel |
| Cabinet Size (H*W) | 500*500mm | 500*500mm | 500*500mm | 500*500mm | 500*500mm |
| Cabinet Resolution (PX* PX) | 256*256 Pixel | 168*168 Pixel | 128*128 Pixel | 64*64 Pixel | 52*52 Pixel |
| Cabinet Size (H*W) | 500*1000mm | 500*1000mm | 500*1000mm | 500*1000mm | 500*1000mm |
| Cabinet Resolution (PX* PX) | 256*512 Pixel | 168*336 Pixel | 128*256 Pixel | 128*256 Pixel | 52*104 Pixel |
| Drive mode | 1/32 scan | 1/32 scan | 1/16 scan | 1/16 scan | 1/13 scan |
| Weight | 7/13 KG | 7/13 KG | 7/13 KG | 7/13 KG | 7/13 KG |
| Viewing Distance | ＞1m | ＞2m | ＞3m | ＞3m | ＞4m |
| Brightness | 1000nits | 1000nits | 1000nits | 4500nits | 4500nits |
| IP Rating | IP43 | IP43 | IP43 | IP65 | IP65 |
| Maximum Power Consumption | 680W | 650W | 600W | 700W | 740W |
| Average Power Consumption | 200W | 195W | 180W | 210W | 220W |
| Application | Indoor | Indoor | Indoor | Outdoor | Outdoor |
| Case Material | Die-casting aluminum | ||||
| Viewing Angle | 140° (H)/140°(V) | ||||
| Input voltage | 110-220V | ||||
| Grey Scale（bit） | 16bit | ||||
| Refresh rate(HZ) | 1920 or 3840 optional | ||||
| Control method: | Sync&Async | ||||
| Temperature Operating (℃) | -20℃〜+ 80℃ | ||||
| Working Humidity | 10%RH~90%RH | ||||
| Services access | Dual (Front and Rear) | ||||
| Certificate | CE/ROHS/FCC | ||||

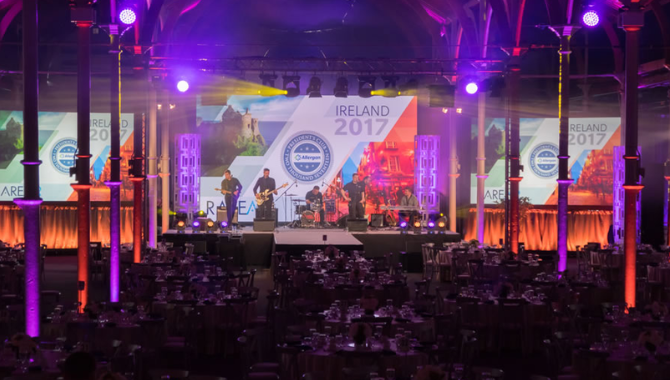

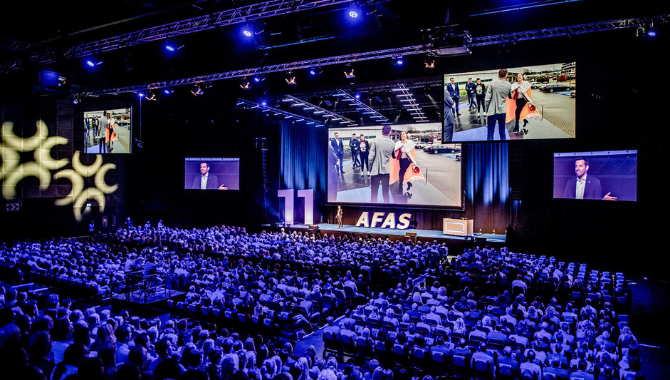

Case Show
Yes, up to 6000 nits brightness ensures clear visibility even outdoors.
Yes, IP65-rated cabinets protect against rain and dust.
Panels are modular and can be combined for large-scale video walls of any size.
