Rental RF LED Display
- Flexible cabinet design supports concave & convex curves
- Stable visual performance even on non-flat surfaces
- Rental-optimized structure for repeated assembly
- Lightweight panels reduce transport and handling effort
- Indoor & outdoor configurations cover diverse event needs
Rental LED Display -RF Series
The RF series offers flexible and creative LED solutions, ideal for curved, irregular, or custom-shaped installations. Perfect for immersive stage, retail, or exhibition setups.

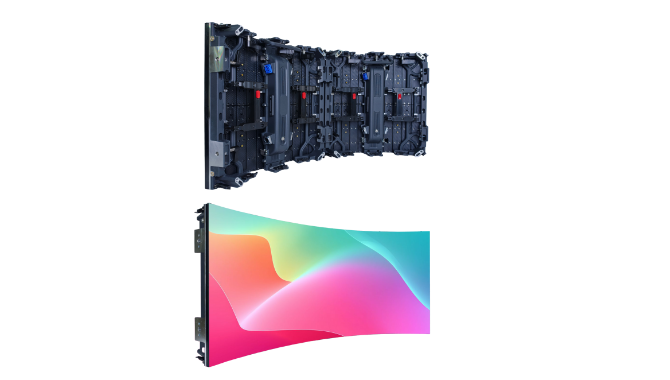

Flexible & Curvable Design
- Supports smooth curved LED walls and creative shapes
- Adjustable angles for precise alignment
Weather-Resistant & Waterproof
Sealed cabinet structure with enhanced waterproof design allows reliable operation in rainy and humid outdoor environments.

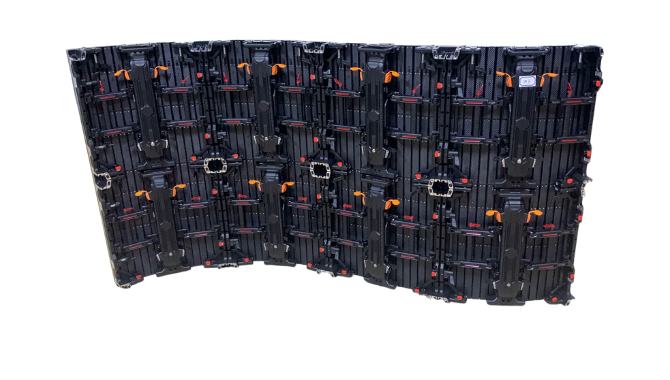

Rental-Ready Structure
- Reinforced cabinet for frequent use
- Fast-lock system for quick installation and dismantling

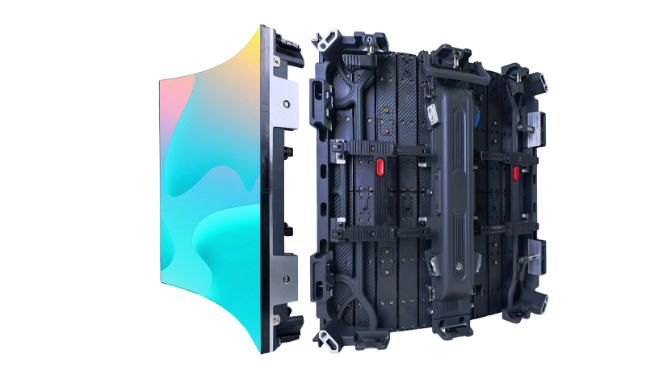

Creative Configuration Support
- Cylindrical, wave, corner, and immersive LED installations
- Compatible with standard truss and hanging systems
More design freedom
Indoor & outdoor
Faster execution
Stronger differentiation
Flexible cabinet design
Lightweight panels
- Specification
- Video Show
| Parameter | ||
| Model Type | RF-P2.6 | RF-P3.91 |
| Pixel pitch | 2.6mm | 3.91mm |
| Destiny | 147,456 Dots/M2 | 655,36 Dots/M2 |
| LED Type | SMD1515 | SMD2121 |
| Pixel type(R / G / B) | 1R1G1B (3 in 1) | 1R1G1B (3 in 1) |
| Module size | 250*250mm | 250*250mm |
| Module Resolution | 96*96 Pixel | 64*64 Pixel |
| Cabinet Size (H*W) | 500*500mm | 500*500mm |
| Cabinet Resolution (PX* PX) | 192*192 Pixel | 128*128 Pixel |
| Drive mode | 1/16 scan | 1/16 scan |
| Weight | 7.5 KG | 7.5 KG |
| Viewing Distance | ＞2.6m | ＞3.91m |
| Brightness | 1000nits | 1000nits |
| IP Rating | IP43 | IP43 |
| Maximum Power Consumption | 660W | 600W |
| Average Power Consumption | 210W | 180W |
| Application | Indoor | Indoor |
| Case Material | Die-casting aluminum | |
| Viewing Angle | 140° (H)/140°(V) | |
| Input voltage | 110-220V | |
| Grey Scale（bit） | 16bit | |
| Refresh rate(HZ) | 3840HZ | |
| Control method: | Sync&Async | |
| Temperature Operating (℃) | -20℃〜+ 80℃ | |
| Working Humidity | 10%RH~90%RH | |
| Services access | Rear | |
| Certificate | CE/ROHS/FCC | |

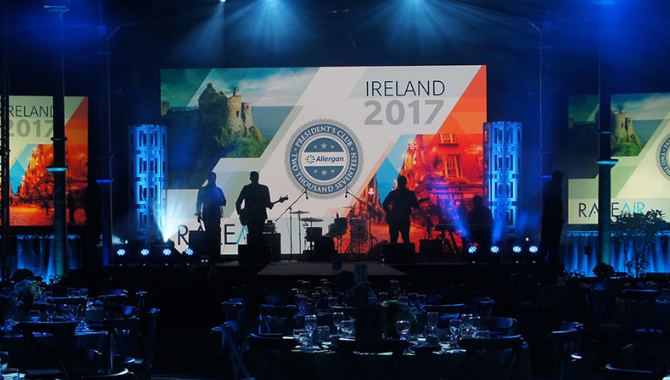

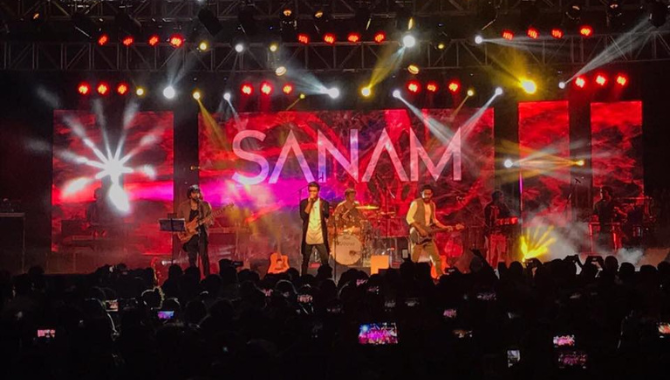

Case Show
Can RF panels create fully curved walls?
Yes, panels are flexible and can be bent to achieve various curvatures.
Are RF panels suitable for indoor high-resolution content?
Yes, pixel pitch options P2.6–P3.91 provide crisp visuals for indoor environments.
Is transportation difficult for RF panels?
No, lightweight modular design ensures easy handling and fast deployment.
