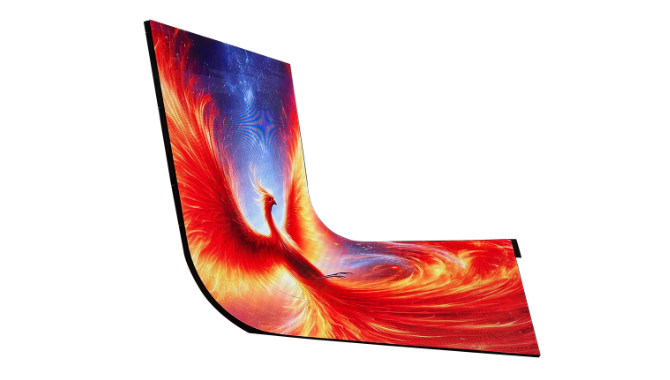

NSE Rolling Up LED Display
A Revolutionary Product in the LED Display Industry
The NSE Rolling Up LED Display transforms traditional LED deployment with its patented cabinet-free design. Unlike rigid, bulky systems, our screen uses a flexible panel that rolls for easy transport and setup. Despite its flexibility, the display retains stunning 4K resolution and vibrant contrast, ideal for both indoor and outdoor applications.
NSE Rolling Up LED Display Advantage
Rolls into a compact suitcase; easy to carry and store
Aluminum alloy frame, available with IP65 waterproofing for outdoor use
60% reduction in shipping cost compared to traditional LED panels

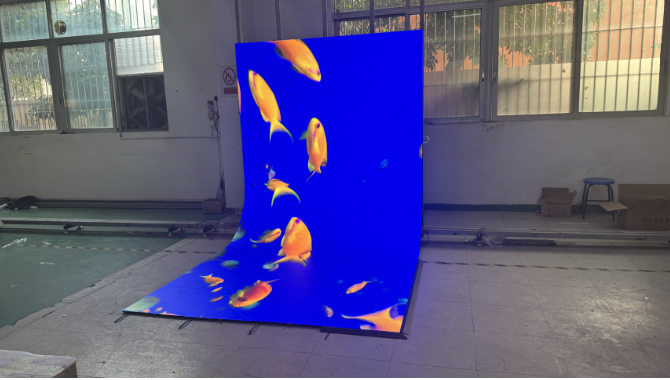

Rolling Flexible LED Display Features
Precision Technology Meets Practical Design
- Pixel Pitch Options: From P1.9 to P3.9 — fully customizable
- High Refresh Rate: Up to 3840Hz for flicker-free video playback
- Power Efficiency: Consumes only 120W/m² — 30% lower than industry average
- Control Systems: Compatible with NovaStar, Colorlight, Linsn, and more

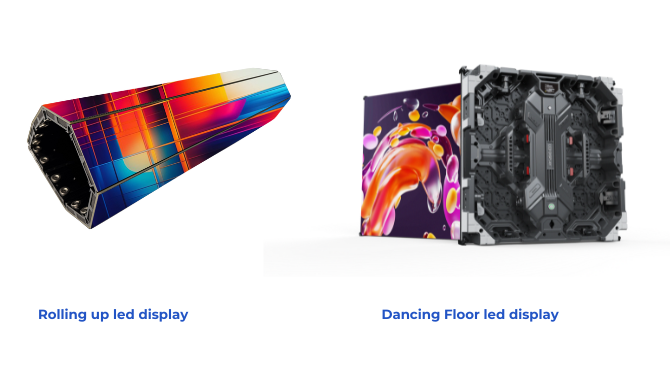

Rolling Up vs Traditional LED Screens
- Feature Rolling Up LED Traditional LED
- Setup Time 5–15 minutes 2+ hours
- Transport Car trunk or carry-on Requires freight truck
- Flexibility Curved and flat supported Rigid panels only
High Image Quality & Perfect Visual Enjoyment
Experience crisp, vibrant visuals with ultra-fine P1.9 pixel pitch, delivering cinema-grade resolution for close-up audiences. Whether indoors or outdoors, enjoy true-to-life color and wide-angle clarity.
Less Power Usage
Engineered for energy efficiency, our rolling LED displays consume just 120W/m², reducing your operational costs while extending display lifespan — eco-friendly and cost-effective.
Rolling Up vs Traditional LED Screens
| Feature | Rolling Up LED | Traditional LED |
| Setup Time | 5–15 minutes | 2+ hours |
| Transport | Car trunk or carry-on | Requires a freight truck |
| Flexibility | Curved and flat surfaces are supported | Rigid panels only |
✅Events & Festivals: Deploy 100㎡ LED walls in under 30 minutes, perfect for dynamic setups like Coachella or outdoor expos.
✅Retail & Pop-Ups: Flexible, lightweight visuals to attract attention in mall kiosks, pop-up stores, or window displays.
✅Touring Productions: Cut logistics weight by 70% — ideal for concerts, shows, and brand tours across multiple cities.
✅ 10+ Years of rolling LED R&D innovation
✅50,000㎡ Annual Production Capacity for fast turnaround
✅24/7 Customer Support with on-call engineers available
✅Exported to 50+ Countries — trusted by brands worldwide
How Can Rolling Up LED Displays Boost Your Business?
Deploy 100㎡ LED walls in under 30 minutes, perfect for dynamic setups like Coachella or outdoor expos.
Flexible, lightweight visuals to attract attention in mall kiosks, pop-up stores, or window displays.
Cut logistics weight by 70% — ideal for concerts, shows, and brand tours across multiple cities.
- Specification
| Model Type | D-Flex -1.9 | D-Flex -2.6 | D-Flex -3.9 |
| Pixel pitch | 1.9 | 2.6 | 3.9 |
| Density (Dots/㎡) | 262,144 | 147,456 | 65,536 |
| LED Type | SMD1010 | SMD1515 | SMD2121 |
| Pixel type(R / G / B) | 1R1G1B | 1R1G1B | 1R1G1B |
| Module size (mm) | 500*62.5mm | 500*62.5mm | 500*62.5mm |
| Module Resolution (Dots) | 256*32 dot | 192*24 dot | 128*16 dot |
| Cabinet Size (mm) | 500*500 | 500*500 | 500*500 |
| Cabinet Resolution (Dots) | 256*256 | 192*192 | 128*128 |
| Case Material | Iron | Iron | Iron |
| Thickness(MM) | 15 | 15 | 15 |
| Weight (Kg/㎡) | 15 | 15 | 15 |
| Maintain | Front&rear | Front&rear | Front&rear |
| Drive mode | 32S | 24S | 16S |
| Viewing Distance (M) | ≥1.9 | ≥2.6 | ≥3.9 |
| Brightness (Nits) | ≥1,000 | ≥1,000 | ≥1,000 |
| Refresh rate (HZ) | ≥3,840 | ≥3,840 | ≥3,840 |
| Voltage (V) | 110-220 | 110-220 | 110-220 |
| MaximumPowerConsumption(W/㎡) | 500 | 500 | 500 |
| AveragePowerConsumption(W/㎡) | 165 | 165 | 165 |
| TemperatureOperating(℃) | -25℃〜50℃ | -25℃〜50℃ | -25℃〜50℃ |
| Working Humidity | 10％〜95％ | 10％〜95％ | 10％〜95％ |
| IP Rating | IP63/IP21 | IP63/IP21 | IP63/IP21 |
| Viewing Angle (H/W) | 140° | 140° | 140° |
| Control method: | Async&sync | Async&sync | Async&sync |
| Control System | Colorlight | Colorlight | Colorlight |
| Interactive Features | Optional | Optional | Optional |
| Application | Indoor | Indoor | Indoor |
