Transparent LED Banner
Traditional LED displays block visibility, limit design freedom, and reduce light in glass environments
Shape-free vertical banner format
High transparency without blocking sightlines
Optimized for retail, event, and rental use
Designed for Open Glass Environments
The Transparent LED Banner is a lightweight, see-through LED display designed for hanging and vertical installations. It combines high transparency with vivid brightness, making it ideal for glass façades, storefront windows, and open commercial spaces.
High Transparency & Brightness
Engineered to deliver clear content on glass while maintaining open visibility. Suitable for indoor and outdoor transparent LED display applications with strong ambient light.
Lightweight Banner Structure
Slim, low-weight construction minimizes load on ceilings, glass, and supporting frames, enabling safe hanging installations.
Flexible Installation Options
Supports hanging, ceiling-mounted, and custom structures for permanent installations or rental projects.

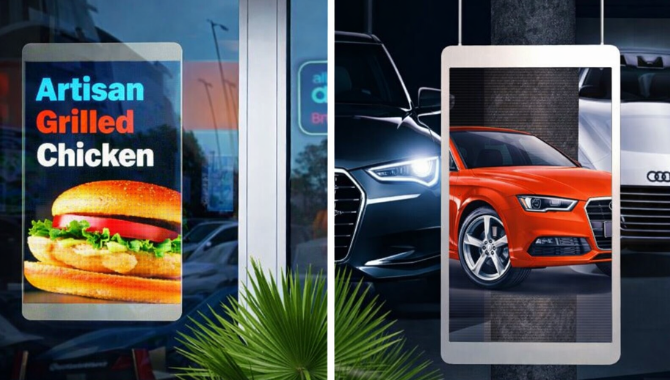

Modular Transparent LED Panels
Built with modular transparent LED panels for scalable heights and flexible layouts, supporting custom banner lengths.
- Specification
- Video Show

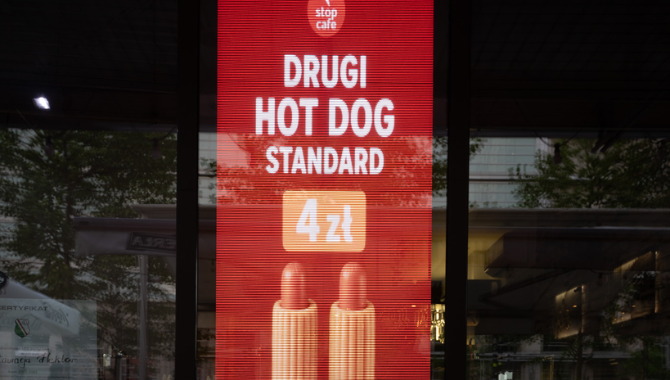

- Case Show
| Model Type | P2.5 | P3 | P3 Plus |
| Pixel pitch | 2.5mm | 3mm | 3mm |
| Destiny | 160,000 dots /SQM | 111111 dots /SQM | 111111 dots /SQM |
| LED Type | SMD1415 | SMD1921 | SMD1921 |
| Pixel type(R / G / B) | 1R1G1B (3 in 1) | 1R1G1B (3 in 1) | 1R1G1B (3 in 1) |
| Module size | 160*160mm | 192*192mm | 192*192mm |
| Module Resolution | 64*64pixel | 64*64pixel | 64*64pixel |
| LED module layout(W×H) | 4*12 | 3*10 | 4*10 |
| Display Size | 640*1920mm | 576*1920mm | 768*1920mm |
| Display Resolution | 256*768 pixel | 192*640 pixel | 256*640 pixel |
| Display area | 1.23m² | 1.11m² | 1.48m² |
| Cabinet size(mm) | 643*1930mm | 579 x 1930mm | 781 x 1930mm |
| Case Material | Aluminum | Aluminum | Aluminum |
| Weight | 45kg/unit | 50kg /unit | 55kg /unit |
| Drive mode | 1/32scan | 1/16scan | 1/16scan |
| Viewing Distance | ＞2m | ＞3m | ＞3m |
| Brightness | 5000 cd/m² | 5000 cd/m² | 5000 cd/m² |
| Viewing Angle | 140°/140° | 140°/140° | 140°/140° |
| Refresh rate | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Input voltage | AC 240/100±10% | AC 240/100±10% | AC 240/100±10% |
| Maximum Power Consumption | 880W | 860W | 1100W |
| Average Power Consumption | 290W | 280W | 365W |
| Control method: | Syn / Asyn (WIFI/ USB/ LAN/ HDMI) | Syn / Asyn (WIFI/ USB/ LAN/ HDMI) | Syn / Asyn (WIFI/ USB/ LAN/ HDMI) |
| Temperature Operating (℃) | -40℃ ~ +75℃ | -40℃ ~ +75℃ | -40℃ ~ +75℃ |
| Working Humidity | 10%-90% | 10%-90% | 10%-90% |
| IP Rating | IP65 | IP65 | IP65 |
| Application | Outdoor | Outdoor | Outdoor |
| Certificate | CE/ROHS/FCC | CE/ROHS/FCC | CE/ROHS/FCC |
Transparent LED banners are mainly used in storefront windows, glass façades, shopping malls, exhibitions, and event spaces where hanging or vertical displays are required without blocking visibility.
Yes. With appropriate brightness and structure design, transparent LED banners can be used in window-facing and semi-outdoor environments, including outdoor transparent LED display applications
Yes. Pixel pitch, banner height, transparency level, and control systems can all be customized to match different glass environments and project requirements.
