Key Features
- Ultra-High Resolution: Pixel pitches as fine as P2.6 for detailed imagery.
- Maintains visibility and natural light
- Designed for commercial and architectural use
- Seamless Integration: Customizable sizes and shapes to fit architectural designs.

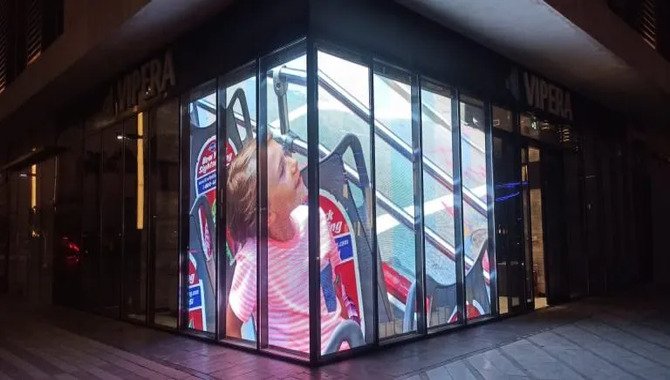

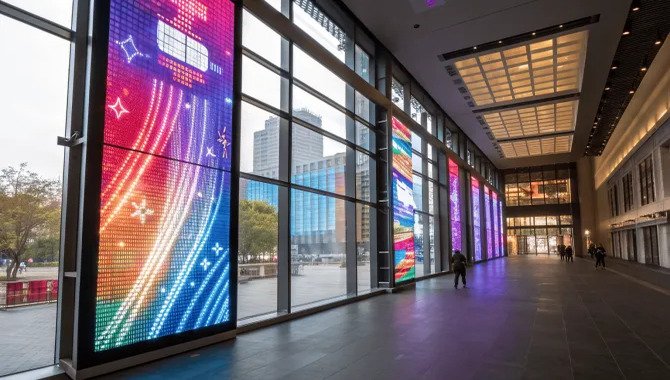

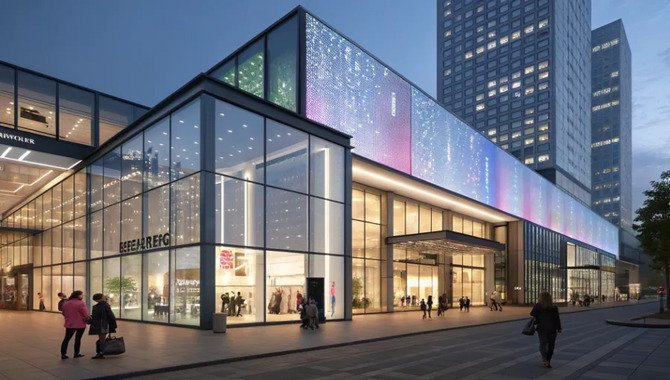

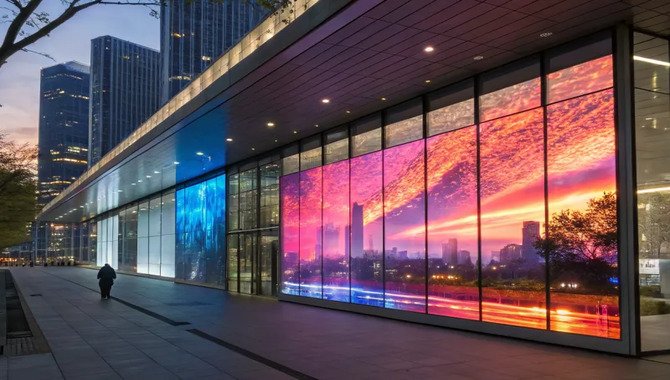

Transparent LED Walls
These expansive transparent LED walls are designed for large-scale architectural projects, offering a striking visual impact while preserving the building’s transparency and aesthetic appeal.
Additional Advantages
Scalable Design: Panels can be combined to cover hundreds of square meters seamlessly
High Durability: Built to maintain performance in public and high-traffic environments

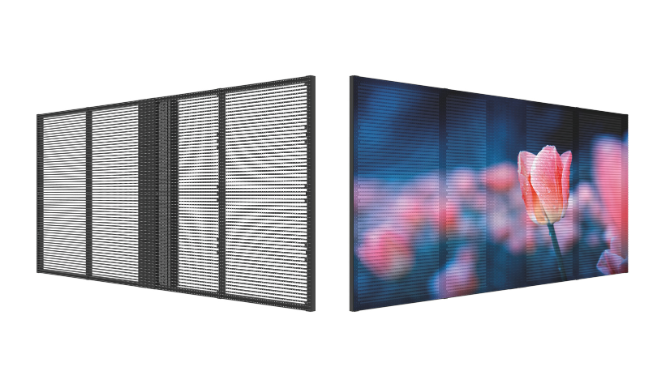

High Transparency Glass Integration
Designed to function as a transparent glass LED display, allowing natural light and visibility to pass through while presenting clear and vibrant content on glass façades.

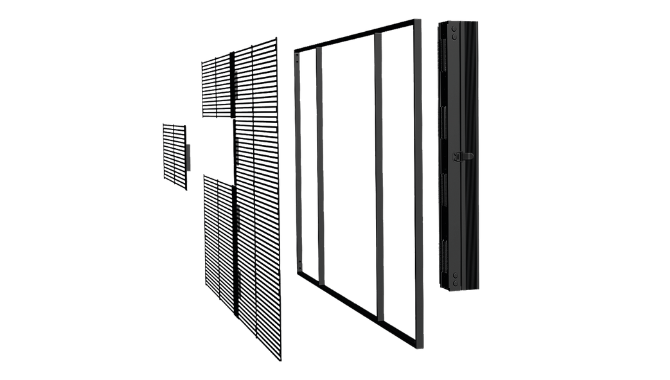

Structural Lightweight Design
Optimized panel weight and frame structure reduce load on glass curtain walls, improving safety and installation feasibility.
Flexible Customization Capability
Pixel pitch, panel size, transparency level, and control systems can be customized to meet specific architectural and project requirements.

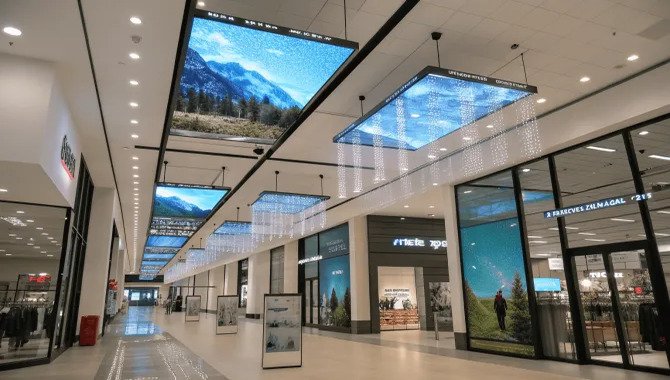

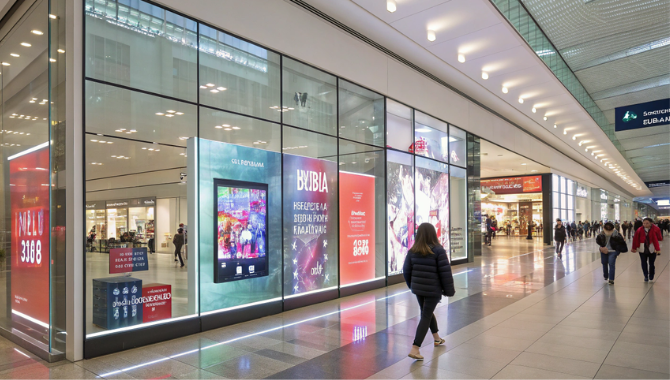

Applications
- Specification
- Video Show
- Case Show
| Model Type | P2.8-5.6 | P3.9-7.8 | P7.8-7.8 | P10.4-10.4 |
| Pixel pitch | 2.8-5.6mm | 3.9-7.8mm | 7.8mm | 10.4mm |
| Pixel density | 61952 dots/㎡ | 32768dots/㎡ | 16384dots/㎡ | 9216 dots/㎡ |
| Module Resolution | 176*22dots | 128*16dots | 64*16dots | 48*12dots |
| Cabinet Size(WXH) | 1000*500mm | 1000*500mm | 1000*500mm | 1000*500mm |
| Cabinet Resolution | 357*89dots | 256*64dots | 128*64dots | 96*48dots |
| Transparency Rate | ≥45% | ≥65％ | ≥65％ | ≥75% |
| Cabinet Material | section aluminum | section aluminum | section aluminum | section aluminum |
| Screen Weight | 10 kg/㎡ | 10 kg/㎡ | 10 kg/㎡ | 13 kg/㎡ |
| Drive Mode | 1/6 Scan | 1/6 Scan | 1/8 Scan | 1/3 Scan |
| Viewing Distance | ≥2.5m | ≥4m | ≥8m | ≥10m |
| Brightness | 5000 cd/㎡ | 5000 cd/㎡ | 5000 cd/㎡ | 5000 cd/㎡ |
| Viewing Angle | H140°，V140° | H140°，V140° | H140°，V140° | H140°，V140° |
| Refresh rate | ＞1920HZ | ＞1920HZ | ＞1920HZ | ＞1920HZ |
| Input voltage | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz |
| Maximum Power Consumption | 720 W/㎡ | 750 W/㎡ | 589 W/㎡ | 720 W/㎡ |
| Average Power Consumption | 288 W/㎡ | 260 W/㎡ | 235 W/㎡ | 288 W/㎡ |
| Temperature Operating (℃) | ﹣20℃～+60℃or﹣40℃～+60℃ | ﹣20℃～+60℃or﹣40℃～+60℃ | ﹣20℃～+60℃or﹣40℃～+60℃ | ﹣20℃～+60℃or﹣40℃～+60℃ |
| Working Humidity | 10%-85%RH | 10%-85%RH | 10%-85%RH | 10%-85%RH |
| IP Rating | IP43 | IP43 | IP43 | IP43 |
| Application | Indoor/Semi-outdoor | Indoor/Semi-outdoor | Indoor/Semi-outdoor | Indoor/Semi-outdoor |
| Certificate | CE/ROHS/FCC | CE/ROHS/FCC | CE/ROHS/FCC | CE/ROHS/FCC |
Yes, custom modules support curves, circles, and unique architectural designs.
Advanced CMS platforms allow centralized control and scheduling for all panels.
