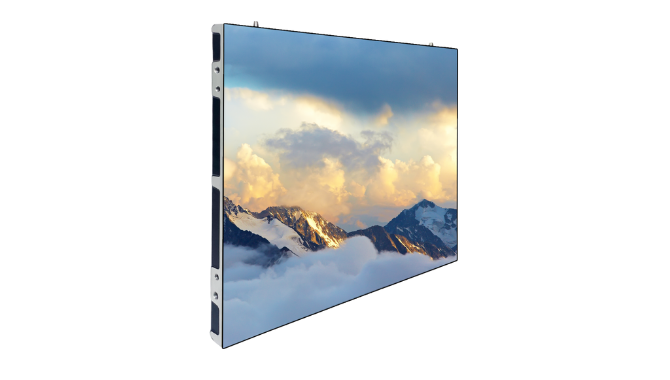

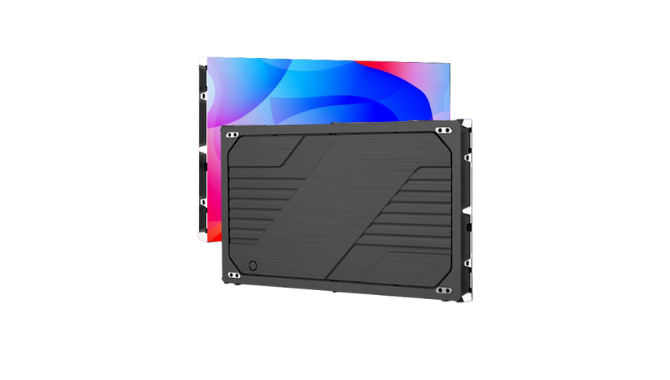

Ultra Slim LED Display Series
- Ultra-thin, super-slim LED cabinet
- 16:9 golden ratio, standard 27.5” size
- FHD / 4K / 8K pixel-to-pixel resolution
- Fine pixel pitch indoor LED screens
- Full front maintenance design
- Dust-proof, moisture-proof, corrosion-proof
Anti-collision structural protection
Ultra Slim LED Display Series

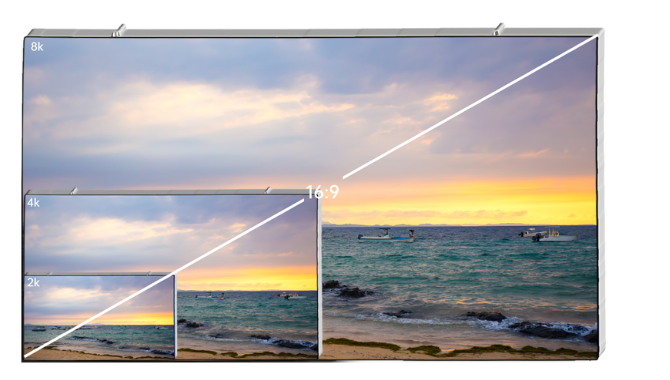

16:9 Golden Ratio, Naturally Better Fit
Designed to match mainstream content formats and architectural proportions.
Standard 27.5” cabinet size
Native 16:9 golden ratio
Pixel-to-pixel FHD / 4K / 8K UHD configurations
No scaling, no black borders
Perfect for indoor LED screens that demand visual accuracy.

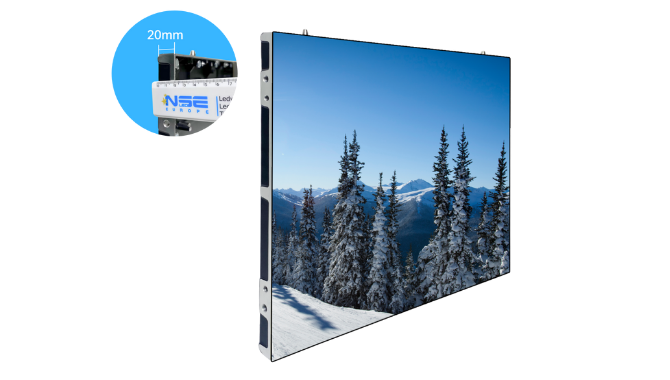

Ultra Thin Form, Real Design Freedom
This super slim LED is made for spaces where every millimeter counts.
Ultra thin cabinet depth
Lightweight structure, wall-friendly
Flush mounting for clean, minimalist interiors
Seamless splicing for flat or extended video walls

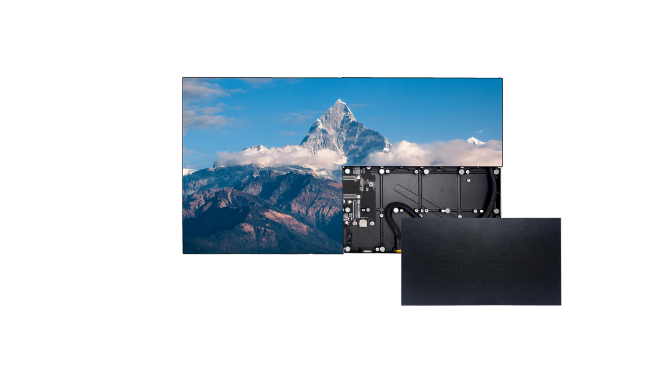

Front Maintenance, Lower Operating Cost
Maintenance should not dictate your installation method.
Full front service design
LED module, power supply, and receiving card accessible from front or rear
No rear clearance required
Faster servicing, reduced labor cost

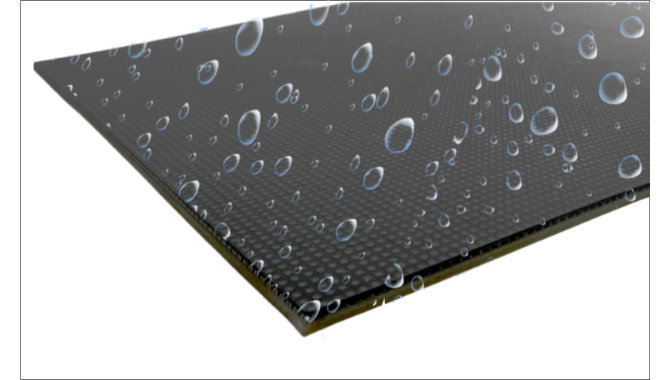

Built to Survive Real Environments
Slim does not mean fragile.
Waterproof & dust-proof structure
Moisture-proof & corrosion-proof treatment
Anti-collision cabinet design
Stable performance for long-term indoor operation
Fine Pixel Pitch, UHD Experience
Precision visuals for close-viewing applications.
Fine pixel pitch options: 1.25mm / 1.56mm / 1.875mm
High grayscale for smooth color transitions
Advanced UHD 2K / 4K / 8K visual experience
High refresh rate for camera-friendly content

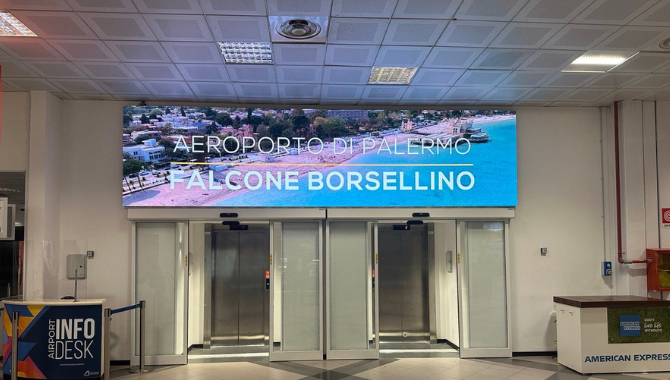

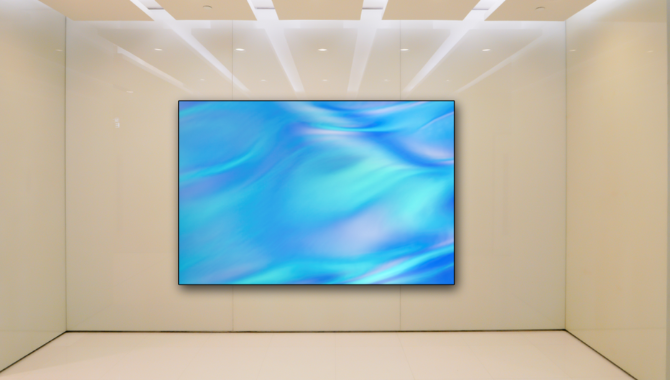

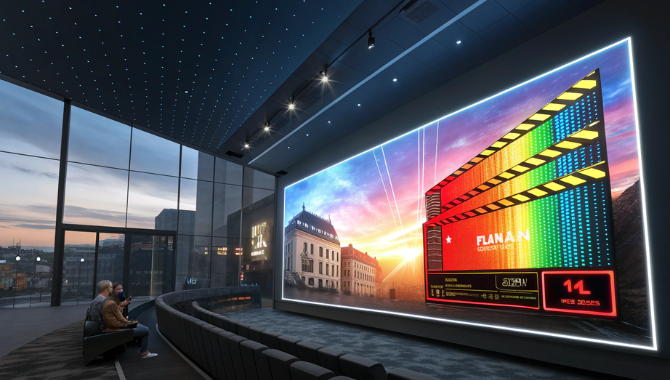

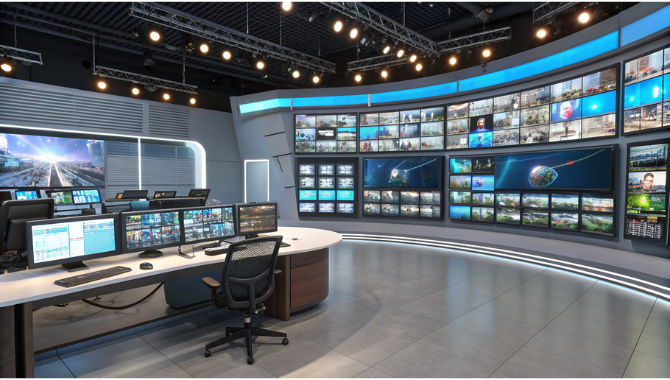

Ultra Slim LED Display enhances brand presence in premium spaces, supports long-term retail, event, and rental use, and delivers consistent visual impact—turning one installation into a repeatable, revenue-generating asset.

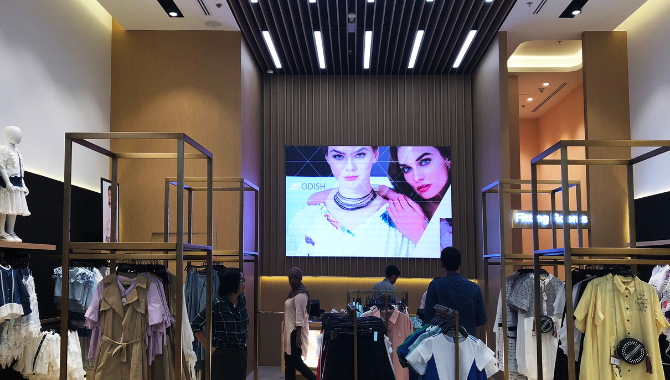

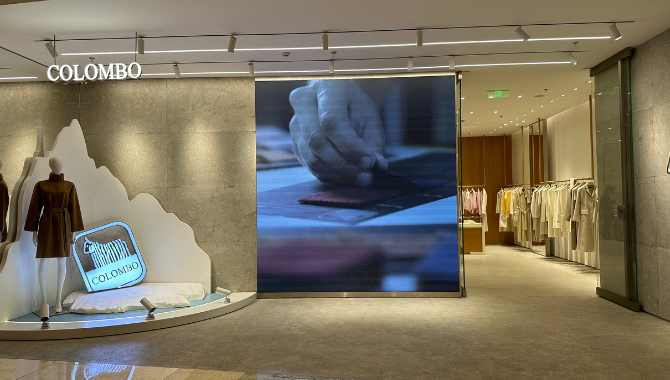

- Retail chains & flagship stores
- Brand showrooms & commercial spaces

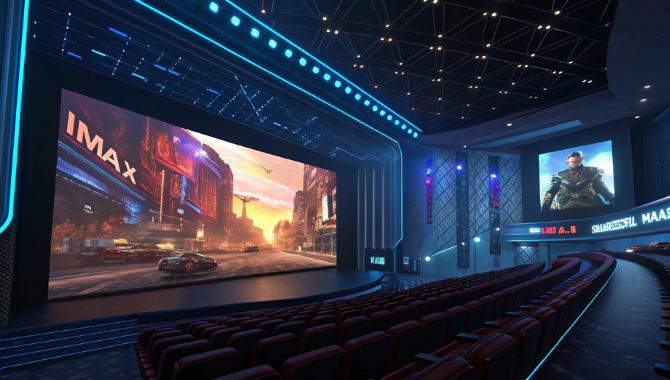

- Events, exhibitions & stage backdrops
- Rental & staging companies
- Corporate offices, education & public venues
- Specification

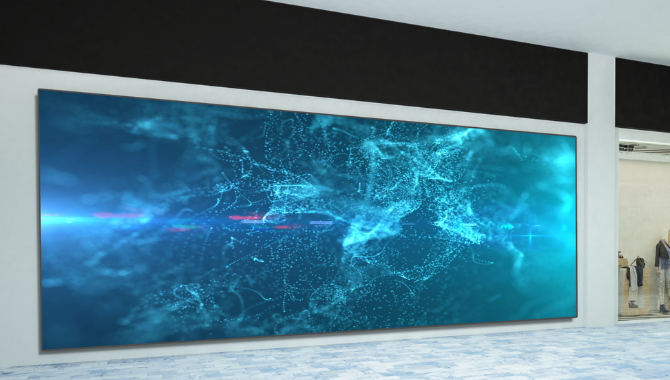

- Case
- Video Show
| Series No. | USW1.25 | USW1.56 | USW1.875 |
| Pixel Pitch | 1.25mm | 1.56mm | 1.875mm |
| Pixel Density/㎡ | 640,000 dots | 409,600 dots | 284,444 dots |
| LED Lamp | SMD1010 | SMD1212 | SMD1515 |
| Module Size | 300mm*168.75mm | 300mm*168.75mm | 300mm*168.75mm |
| Module Resolution | 240* 135dots | 192* 108dots | 160* 90dots |
| Cabinet Size | 600*337.5mm | 600*337.5mm | 600*337.5mm |
| Cabinet Resolution | 480*270 dots | 384*216 dots | 320*180 dots |
| Cabinet material | Die-Casting aluminum | Die-Casting aluminum | Die-Casting aluminum |
| Cabinet Weight | 5.2kg/Panel | 5.2kg/Panel | 5.2kg/Panel |
| Maintenance Type | Front | Front | Front |
| Drive Mode | 1/45 scan | 1/54 scan | 1/30 scan |
| View angle | 140°/140° | 140°/140° | 140°/140° |
| Refresh Rate | 3840Hz (high refersh rate) | 3840Hz (high refersh rate) | 3840Hz (high refersh rate) |
| Brightness | ≥ 600 cd/㎡ | ≥ 800 cd/㎡ | ≥ 800 cd/㎡ |
| Environment | IP20 | IP20 | IP20 |
| Max Power Consumption | 800W/㎡ | 800W/㎡ | 800W/㎡ |
| Avg Power Consumption | 240W/㎡ | 240W/㎡ | 240W/㎡ |
| Voltage | AC100-240V | AC100-240V | AC100-240V |
| Certificate | CE/EMC/FCC/RoHS/CCC | CE/EMC/FCC/RoHS/CCC | CE/EMC/FCC/RoHS/CCC |
